K77 Remote Control Door Lock Receiver

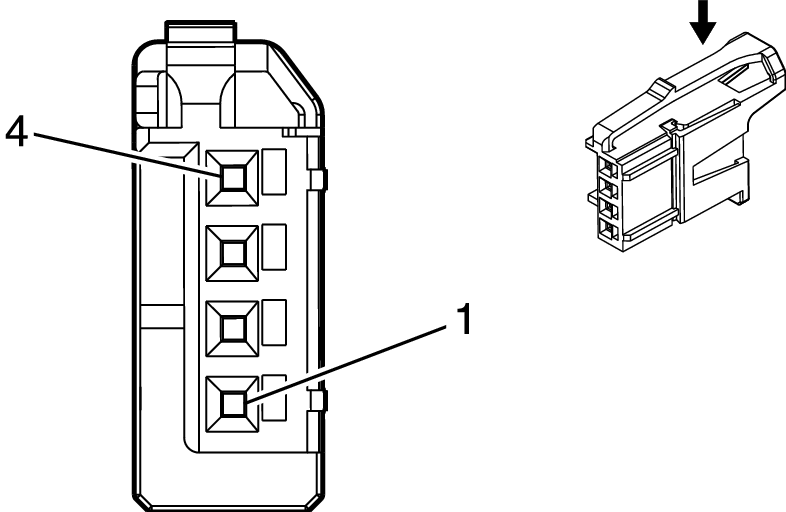

Connector Part Information Harness Type: Body OEM Connector: 33370664 Service Connector: 19369001 Description: 4-Way F 0.64 Micro-Quadlock Series, Sealed (BU)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-64B (LT BU)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35 0.5	BK/WH BK	3273 2350	Remote Function Actuator Low Reference Ground	I I	HATCHBACK NOTCHBACK
2	0.35	YE/GN	3274	Remote Function Actuator Transmit Signal	I	-
3	0.35	BU/WH	3275	Remote Function Actuator Receive Signal	I	-
4	0.35	GY/BN	3272	Remote Function Actuator Control	I	-
