K36 Inflatable Restraint Sensing and Diagnostic Module X1

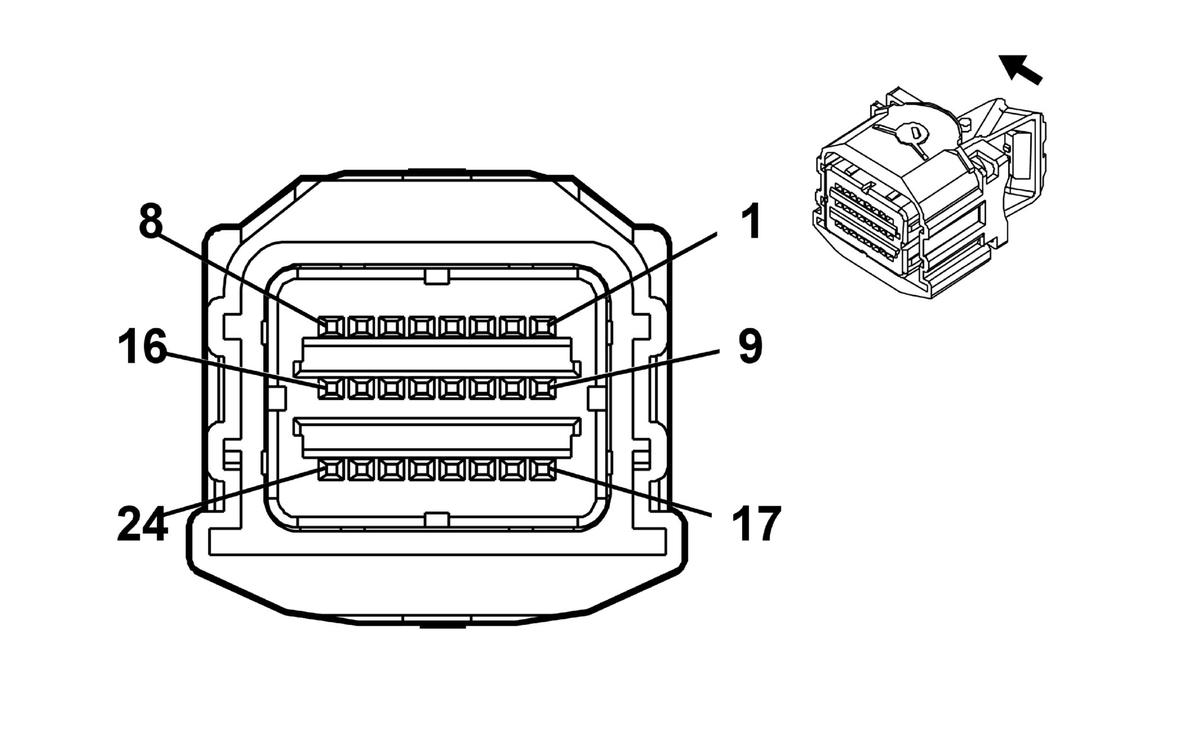

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	19332903	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available
II	19368651	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available
III	19368652	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1 - 2	-	-	-	Not Occupied	-	-
3	0.35	BN/OG	3020	Steering Wheel Module Stage 1 Low Control	II	-
4	0.35	OG/VT	3021	Steering Wheel Module Stage 1 High Control	II	-
5	0.35	YE/OG	3025	Passenger IP Module Stage 1 High Control	II	-
6	0.35	OG/WH	3024	Passenger IP Module Stage 1 Low Control	II	-
7	0.35	OG/VT	3026	Passenger IP Module Stage 2 Low Control	II	-
8	0.35	GY/OG	3027	Passenger IP Module Stage 2 High Control	II	-
9	0.75	RD/BN	2240	Battery Positive Voltage	III	-
10	0.35	VT/WH	5234	Passenger Seat Belt Indicator Control	II	-
11	0.35	BU	2307	Passenger Air Bag On Indicator Control	II	-
12	0.35	GN	2308	Passenger Air Bag Off Indicator Control	II	-
13 - 14	-	-	-	Not Occupied	-	-
15	0.35	GN	5060	Low Speed GMLAN Serial Data	II	-
16	0.35	GN	5060	Low Speed GMLAN Serial Data	II	-
17	0.35	WH/BU	5986	Serial Data Communication Enable	II	-
18	0.35	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	II	-
19	0.75	BK	2450	Ground	I	-
20	0.35	WH	6106	High Speed GMLAN Serial Data (-) 2	II	-
21	0.35	OG/BU	3078	Driver Knee Module High Control	II	-
22	0.35	GY/OG	3079	Driver Knee Module Low Control	II	-
23	0.35	WH/OG	3077	Passenger Knee Module Low Control	II	-
24	0.35	OG/BU	3076	Passenger Knee Module High Control	II	-
