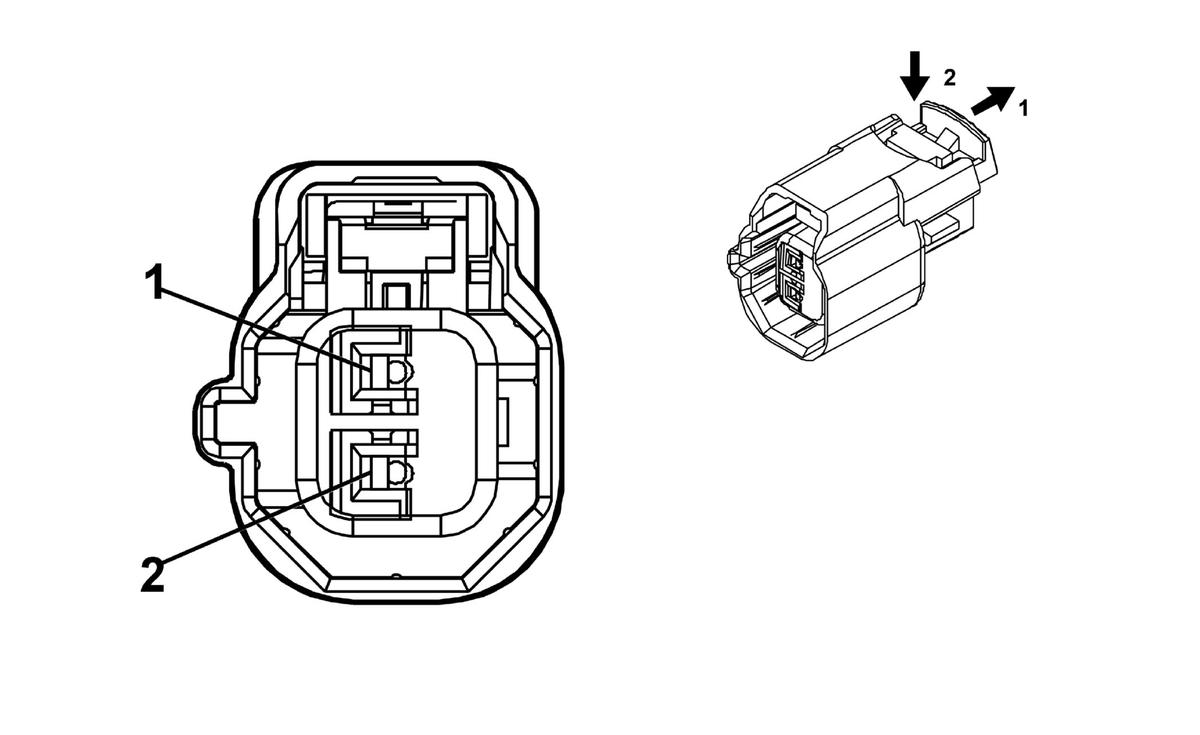

P19AL Speaker - Left Rear Door (-UQA)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Left Rear Door
- OEM Connector: 13509512
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 150 MX Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
GN/BK |
116 |
Left Rear Speaker Signal (-) |
I |
UQF/UZ6 |
| 2 |
0.75 |
GN |
199 |
Left Rear Speaker Control (+) |
I |
UQF/UZ6 |
