E40 Electrical Auxiliary Heater X1
|
|

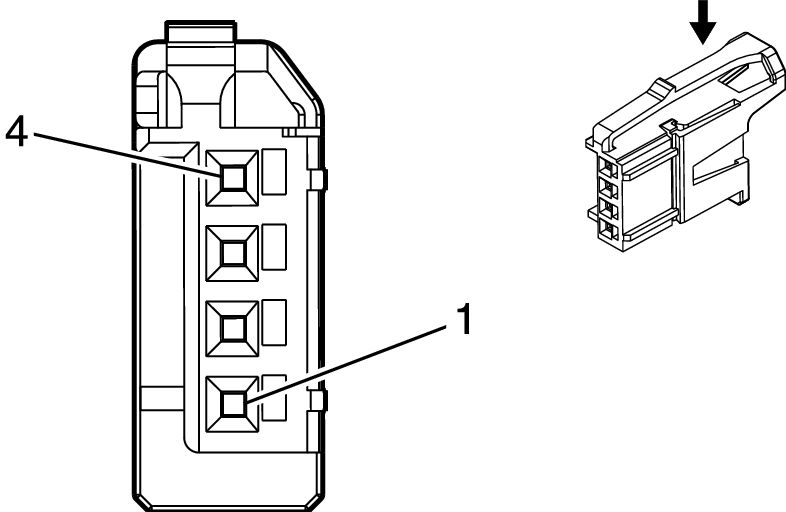

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 33250857
- Service Connector: 19354403
- Description: 4-Way F 0.64 Micro-Quadlock Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.13 |
VT |
3195 |
Auxiliary Heater Control |
I |
- |
| 2 |
0.5 |
VT/GN |
39 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 3 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
