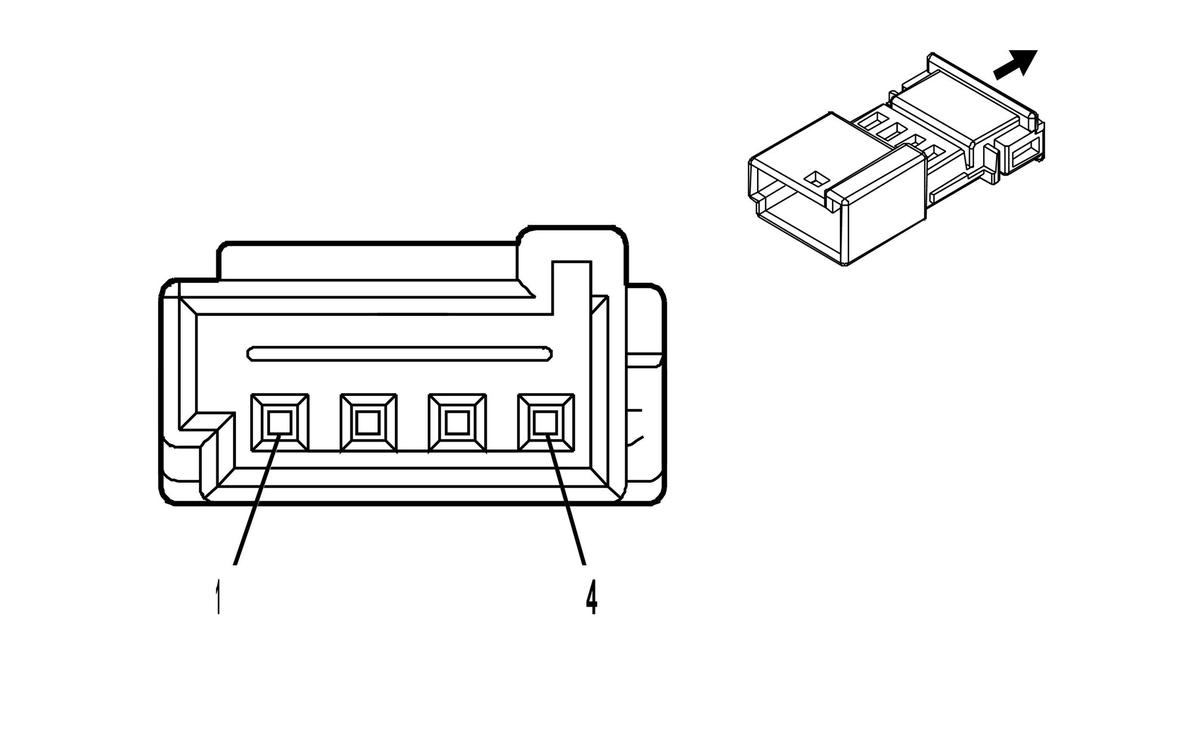

E15 Steering Wheel Heater
|
|
Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 3-968696-2
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.8 |
BK/YE |
- |
Ground |
I |
UVD |
| 2 |
0.8 |
BK/YE |
- |
Ground |
I |
UVD |
| 3 |
0.35 |
BU/YE |
- |
Heated Steering Wheel High Control |
I |
UVD |
| 4 |
0.8 |
GN |
- |
Heated Steering Wheel Sensor Signal |
I |
UVD |
