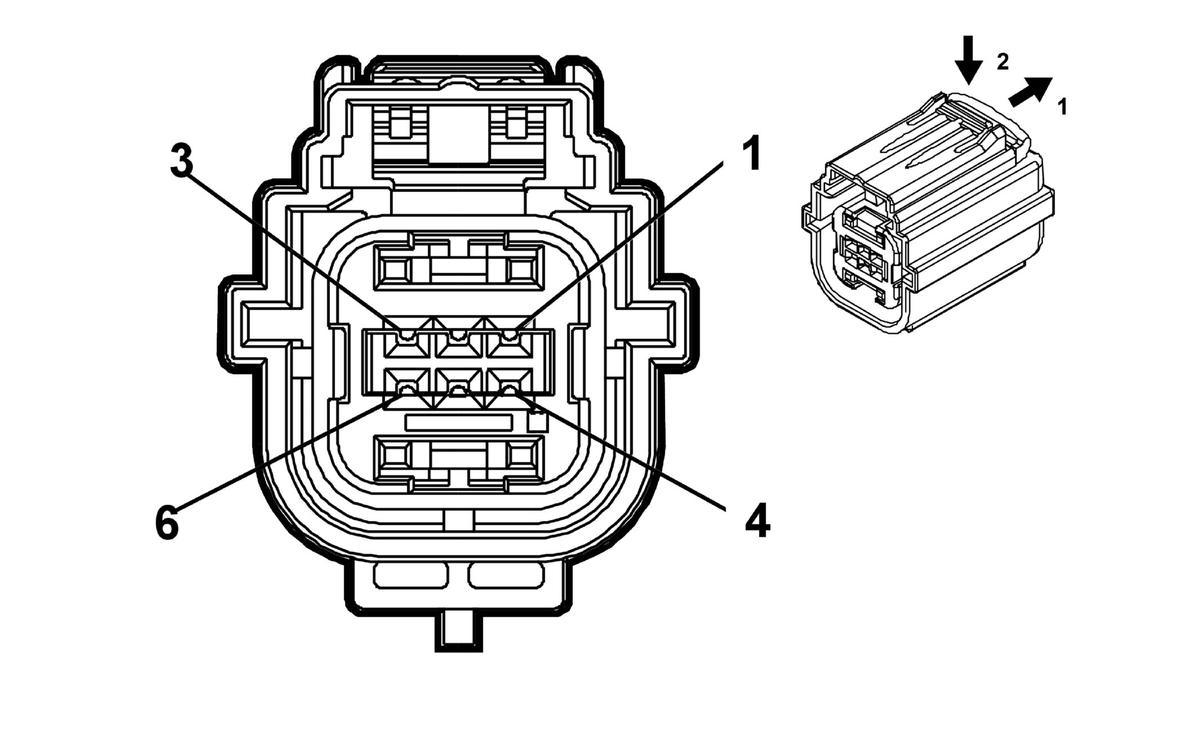

B87 Rearview Camera (Notchback)
|
|
Connector Part Information
- Harness Type: Rear Compartment Lid
- OEM Connector: 13594676
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 0.64 Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT |
6972 |
Camera Signal 2 + |
I |
Notchback+UVC |
| 2 |
0.5 |
BARE |
6974 |
Camera Low Reference |
I |
Notchback+UVC |
| 3 |
0.5 |
GN/WH |
1324 |
Backup Lamp Control |
I |
Notchback+UVC |
| 4 |
0.5 |
YE |
6973 |
Camera Signal 2 |
I |
Notchback+UVC |
| 5 |
0.35 |
BK |
2550 |
Ground |
I |
Notchback+UVC |
| 6 |
0.35 |
VT/GN |
139 |
Run/Crank Ignition 1 Voltage |
I |
Notchback+UVC |
