Rear Seat Cushion Removal and Installation

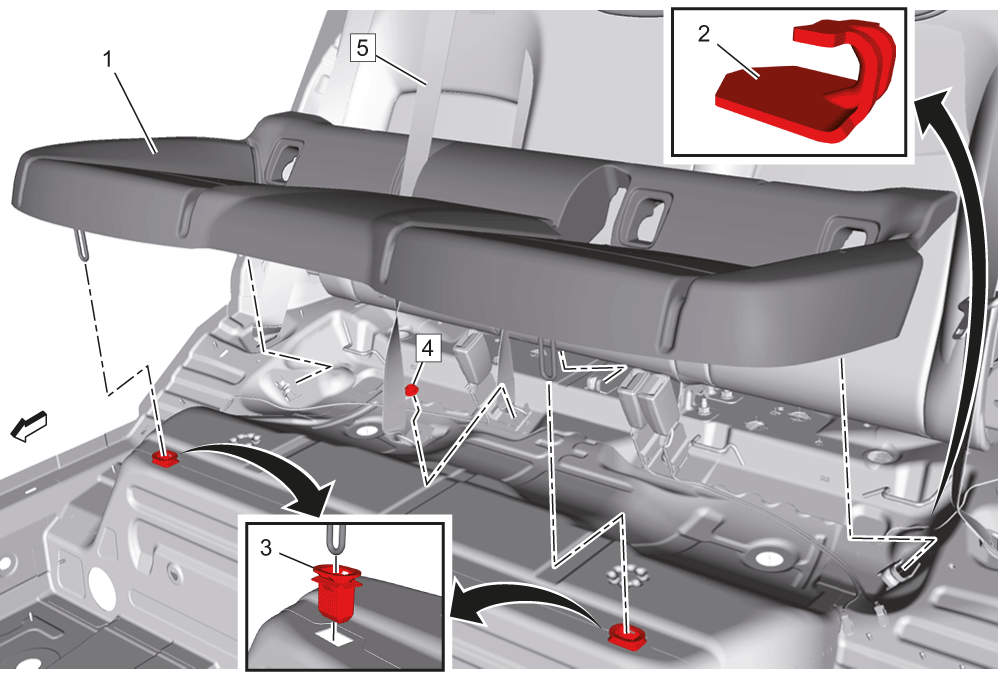

Callout	Component Name
1	Rear Seat Cushion Procedure Pull up on the front of the seat cushion to disengage the retainers and loosen the seat cushion. A high amount of upward force will be required.
2	Rear Seat Cushion Guide (Qty: 3) Procedure Push the rear seat cushion backwards to detach from the metal hooks.
3	Rear Seat Cushion Retainer (Qty: 2) Procedure After removal of the retainers, the sheet metal will be slightly deformed. Use a small hammer to pound the sheet metal back to its original, flat appearance. When installing new plastic retainers on the front of the seat, ONLY seat the retainer to the first click, otherwise the insertion force into the sheet metal will be greatly increased.
4	Rear Center Seat Belt Fastener CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
5	Rear Center Seat Belt Procedure Pass the rear center seat belt through the rear seat cushion. Lift the rear seat cushion out of the vehicle.
