Instrument Panel Knee Bolster Compartment Replacement

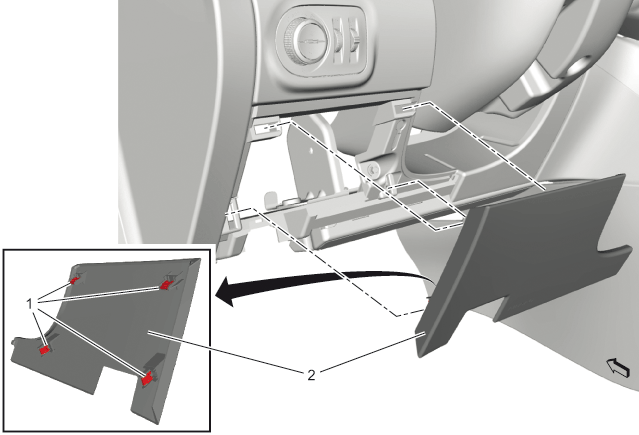

GM4290320
Callout Component Name
1 Instrument Panel Knee Bolster Compartment Clip [4x]
Procedure
Use a flat bladed plastic tool to remove.
2 Instrument Panel Knee Bolster Compartment
