Front Floor Console Replacement (DBU)

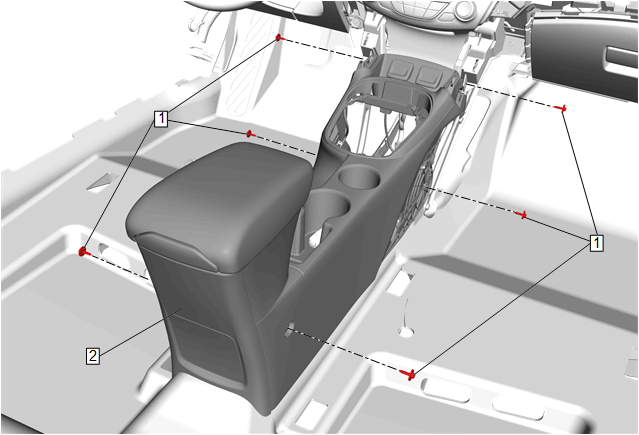

GM5064211
Callout Component Name

Preliminary Procedures

  1. Front Floor Console Extension Panel Replacement [2x]
  2. Instrument Panel Fuse Block Access Cover Frame Replacement
  3. Instrument Panel Fuse Block Access Hole Cover Replacement
  4. Transmission Control Lever Knob Replacement
1 Front Floor Console Bolt [6x]
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Front Floor Console

Procedure

  1. Loosen the parking brake lever boot. Parking Brake Lever Boot Replacement
  2. To access the electrical connector, remove the right side instrument panel tie bar brace. Instrument Panel Tie Bar Brace Replacement
  3. Disconnect the electrical connectors.
  4. Transfer components as necessary.
