Headlamp Switch Replacement

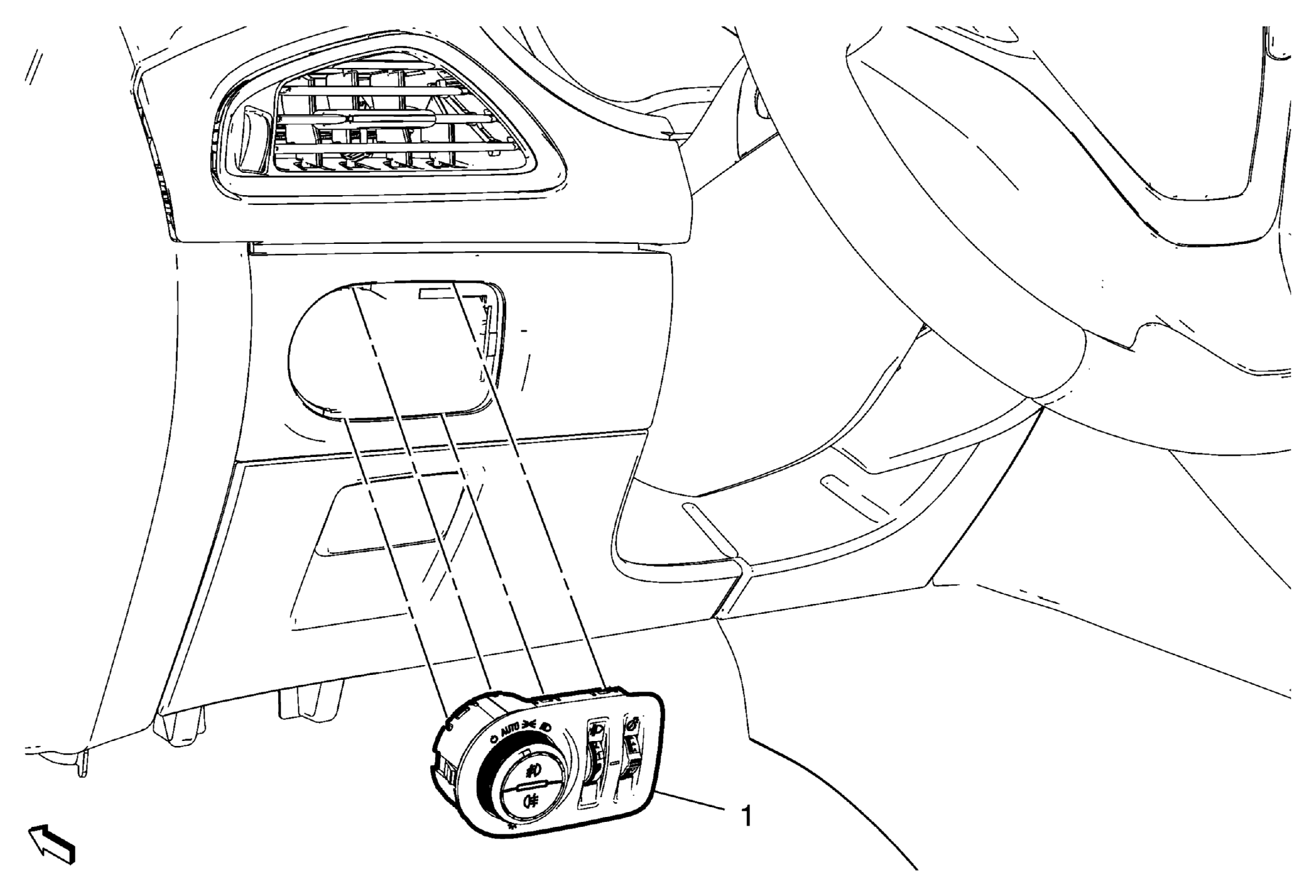

GM3650390
Callout Component Name
Preliminary Procedure
Open the instrument panel driver knee bolster compartment.
1 Headlamp Switch

Procedures

  1. Unlock the retaining tabs. [4x]
  2. Disconnect the electrical connectors.
