Radio Speaker Amplifier Replacement (Notchback)

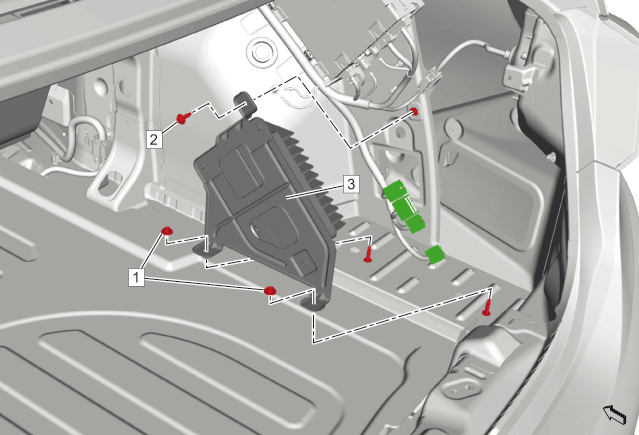

GM4284232
Callout Component Name
Preliminary Procedure
Rear Compartment Side Trim Replacement - Right Side (Notchback)
1 Radio Speaker Amplifier Nut [2x]
CAUTION:

Fastener Caution


Tighten
9 N.m (80 lb in)
2 Radio Speaker Amplifier Bolt
Tighten
9 N.m (80 lb in)
3 Radio Speaker Amplifier

Procedure

  1. Disconnect the electrical connector.
  2. Control Module References
