Radio Speaker Amplifier Replacement (Hatchback)

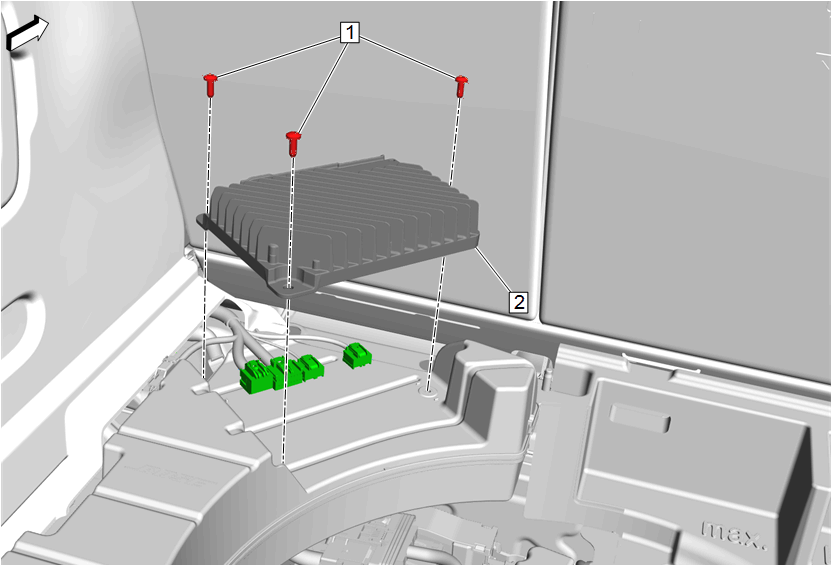

GM4818166
Callout Component Name
Preliminary Procedure
Rear Compartment Floor Panel Trim Replacement (Hatchback)
1 Radio Speaker Amplifier Bolt [3x]
CAUTION:

Fastener Caution


Tighten
9 N.m (80 lb in)
2 Radio Speaker Amplifier

Procedure

  1. Disconnect the electrical connectors.
  2. Run all necessary programming and setup procedures. Control Module References
