Electrical Component Locator - Ground Views
>>

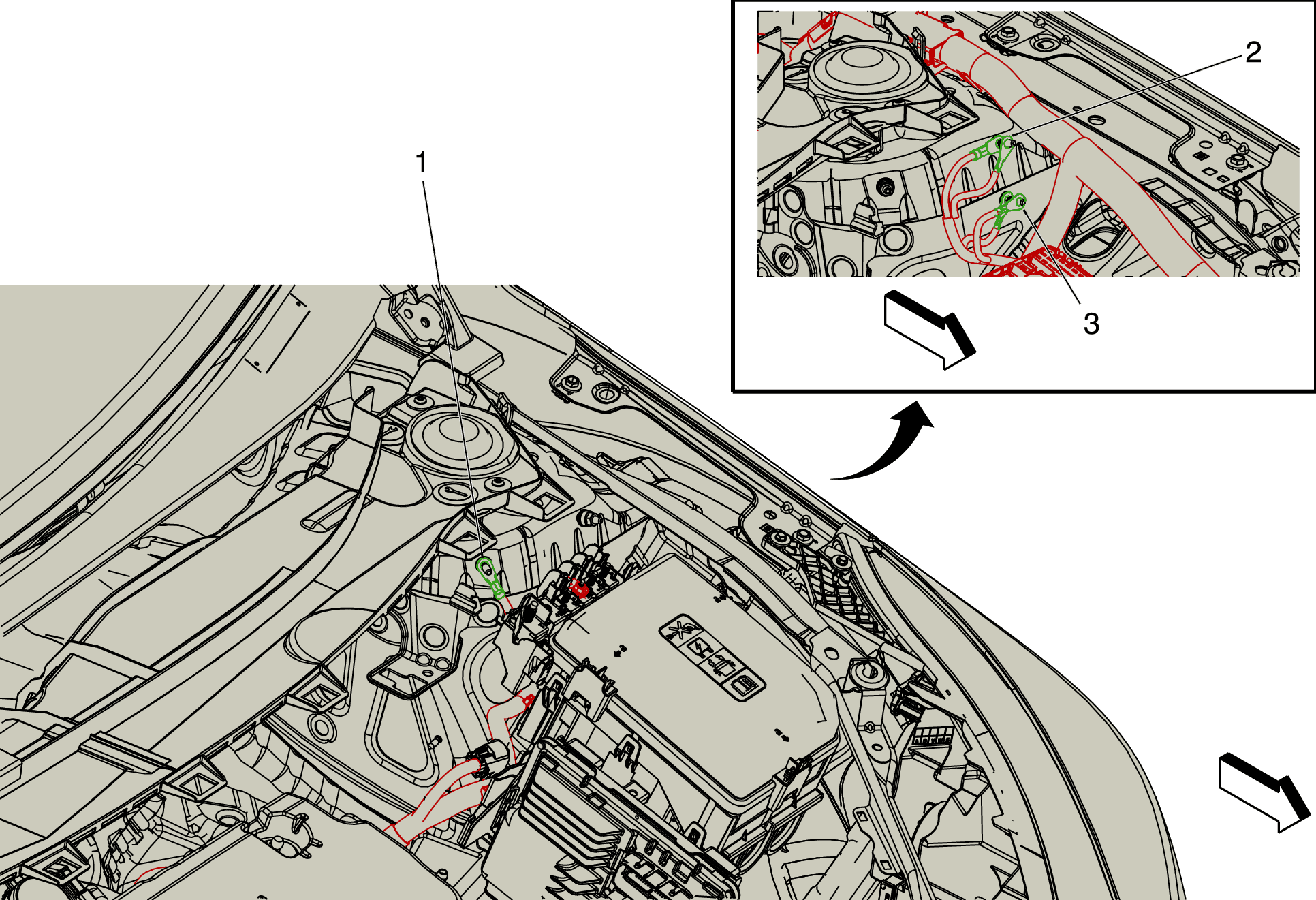

Ground Views
>>
G112, G111, G110
G112, G111, G110
G112, G111, G110
Items
1. G112 Power Steering Harness
2. G111 Body Harness
3. G110 Body Harness
