Hood Primary and Secondary Latch Replacement

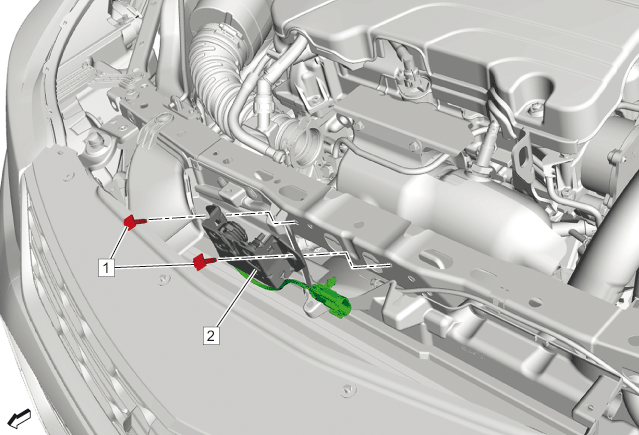

Callout	Component Name
Preliminary Procedure Radiator Air Upper Baffle and Deflector Replacement
1	Hood Primary and Secondary Latch Bolt [2x] CAUTION: Fastener Caution Tighten 13 N.m (115 lb in)
2	Hood Primary and Secondary Latch Procedure Unhook hood primary latch release cable. {If equipped} Disconnect the electrical connector.

Callout

Component Name

Hood Primary and Secondary Latch Bolt [2x]

CAUTION:

Tighten
13 N.m (115 lb in)

Hood Primary and Secondary Latch

Procedure
