X310 Driver Seat Harness to Body Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

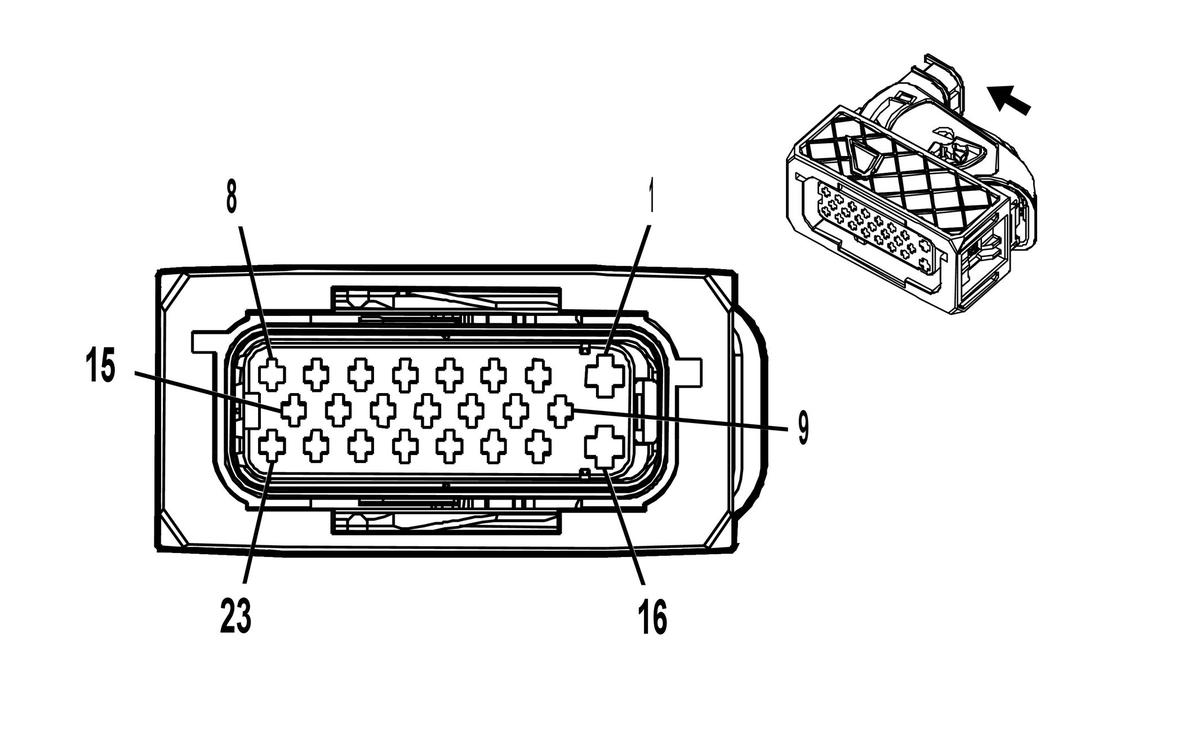

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 13674806
- Service Connector: Service by Harness - See Part Catalog
- Description: 23-Way F 1.5 DSQ, 2.8 ATS Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13750010
- Service Connector: 19332380
- Description: 23-Way M 1.5 DSQ, 2.8 ATS Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| III |
13505800 |
J-35616-5 (PU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| IV |
13575380 |
J-35616-3 (GY) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| V |
19331731 |
J-35616-3 (GY) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.75 |
BN/VT |
2077 |
II |
- |
Driver Heated Seat Element Control |
1 |
0.75 |
BN/VT |
2077 |
III |
- |
| 2 |
- |
- |
- |
- |
- |
Not Occupied |
2 |
- |
- |
- |
- |
- |
| 3 |
0.5 |
OG/BN |
238 |
I |
- |
Driver Seat Belt Switch Signal |
3 |
0.5 |
OG/BN |
238 |
IV |
- |
| 4 |
0.5 |
BK/OG |
1363 |
I |
- |
Driver Seat Belt Switch Low Reference |
4 |
0.5 |
BK/OG |
1363 |
IV |
- |
| 5 |
0.5 |
BK/YE |
2080 |
I |
- |
Driver Heated Seat NTC Low Reference |
5 |
0.5 |
BK/YE |
2080 |
IV |
- |
| 6 |
0.5 |
YE/GY |
2079 |
I |
- |
Driver Heated Seat NTC Signal |
6 |
0.5 |
YE/GY |
2079 |
IV |
- |
| 7 |
0.5 |
BU |
2425 |
I |
- |
Driver Heated Back NTC Signal |
7 |
0.5 |
BU |
2425 |
IV |
- |
| 8 - 9 |
- |
- |
- |
- |
- |
Not Occupied |
8 - 9 |
- |
- |
- |
- |
- |
| 10 |
0.5 |
OG/BU |
3068 |
I |
- |
Driver Side Impact Module High Control |
10 |
0.5 |
OG/BU |
3068 |
V |
- |
| 11 |
0.5 |
BK/OG |
3069 |
I |
- |
Driver Side Impact Module Low Control |
11 |
0.5 |
BK/OG |
3069 |
V |
- |
| 12 - 15 |
- |
- |
- |
- |
- |
Not Occupied |
12 - 15 |
- |
- |
- |
- |
- |
| 16 |
0.75 |
VT/BK |
2424 |
II |
- |
Driver Heated Back Element Low Reference |
16 |
0.75 |
VT/BK |
2424 |
III |
- |
| 17 - 23 |
- |
- |
- |
- |
- |
Not Occupied |
17 - 23 |
- |
- |
- |
- |
- |
