T6 Power Inverter Module X1

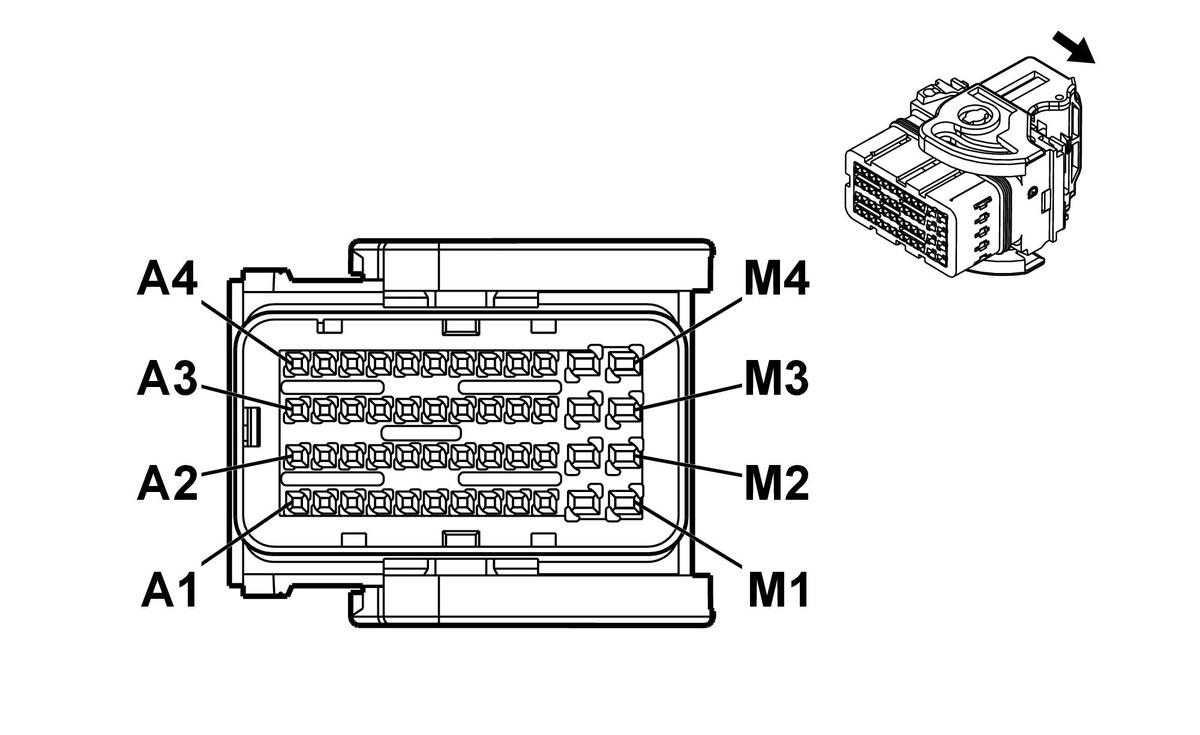

GM4539653Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 98993-5021
  • Service Connector: 19354859
  • Description: 48-Way F 0.6, 1.5 Sealed, Series (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 19354833 J-35616-64B (LT BU) J-38125-215A Not Available Not Available Not Available Not Available
II 19354834 J-35616-64B (LT BU) J-38125-215A Not Available Not Available Not Available Not Available
III 19354835 J-35616-2A (GY) J-38125-215A Not Available Not Available Not Available Not Available
Pin Size Color Circuit Function Terminal Type ID Option
1A - 4M - - - Not Occupied - -
B1 0.75 WH/GN 7648 Traction Power Inverter Module Traction Power Inverter Module Resolver 1 Excitation Signal Negative I -
B2 0.75 BU 7645 Traction Power Inverter Module Resolver 1 Excitation Signal Positive I -
B4 0.5 VT/WH 5981 PRNDL A Signal II -
C1 0.75 BN 7652 Traction Power Inverter Module Resolver 1 S3 Signal I -
C2 0.75 YE 7649 Traction Power Inverter Module Resolver 1 S1 Signal I -
C3 0.5 GY/BN 5982 PRNDL B Signal II -
C4 0.5 GY/WH 4168 PRNDL P Signal II -
D1 0.75 GY 7646 Transmission Traction Power Inverter Module Resolver 1 S4 Signal I -
D2 0.75 VT/GN 7647 Transmission Traction Power Inverter Module Resolver 1 S2 Signal I -
D3 0.5 WH/BK 5983 PRNDL C Signal II -
D4 0.5 GY/YE 4169 PRNDL S Signal II -
E3 0.5 WH 2501 High Speed GMLAN Serial Data (-) 1 II -
E4 0.5 BU 2500 High Speed GMLAN Serial Data (+) 1 II -
F1 0.5 GY/BK 2967 Transmission Auxiliary Oil Pump Relay Control II -
F2 0.5 GY/BU 4324 Transmission Auxiliary Pump Feedback Signal II -
F3 0.5 WH 2501 High Speed GMLAN Serial Data (-) 1 II -
F4 0.5 BU 2500 High Speed GMLAN Serial Data (+) 1 II -
G1 0.5 BK/VT 5596 High Voltage Interlock Loop Low Reference 2 II -
G2 0.5 YE 5690 High Voltage Interlock Loop Signal 3 II -
G3 0.5 WH 7494 High Speed GMLAN Serial Data (-)3 II -
G4 0.5 BU/BK 7493 High Speed GMLAN Serial Data (+)3 II -
H1 0.5 BN/WH 585 Transmission Oil Temperature Sensor Signal II -
H2 0.5 BK/BN 586 Transmission Oil Temperature Sensor Low Reference II -
H3 0.5 WH 7494 High Speed GMLAN Serial Data (-)3 II -
H4 0.5 BU/BK 7493 High Speed GMLAN Serial Data (+)3 II -
J1 0.5 WH/BU 7653 Traction Power Inverter Motor 1 Temperature Sensor Signal II -
J2 0.5 GN 7654 Traction Power Inverter Motor 1 Temperature Sensor Low Reference II -
J3 0.5 WH 6106 High Speed GMLAN Serial Data (-) 2 II -
J4 0.5 BU/YE 6105 High Speed GMLAN Serial Data (+) 2 II -
K2 0.5 BK 150 Ground II -
L1 0.5 YE/BU 3992 Internal Mode Switch Voltage Supply A III -
L3 0.5 VT/GY 1439 Run/Crank Ignition 1 Voltage III -
L4 0.5 VT/BU 3991 Internal Mode Switch Voltage Supply B III -
M1 0.5 RD/VT 340 Battery Positive Voltage III -
M2 0.5 BU/WH 3977 Accessory Wakeup Serial Data 2 III -
M4 0.5 RD/YE 240 Battery Positive Voltage III -
