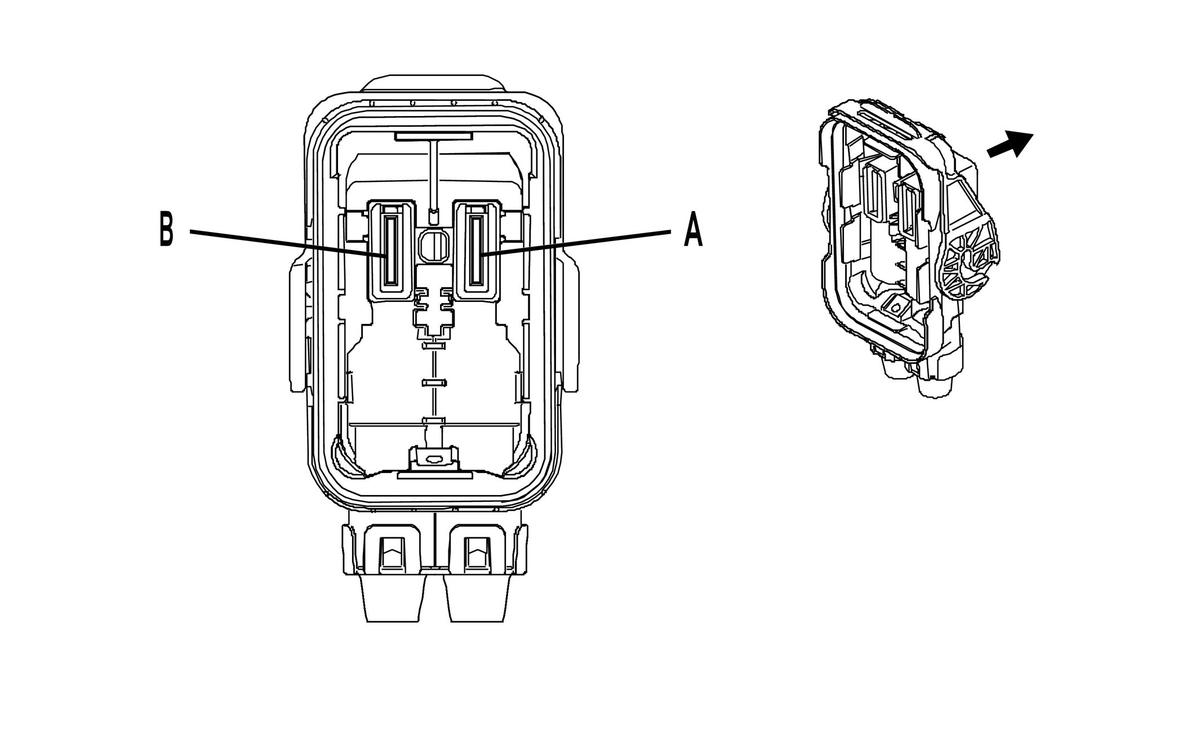

T24 Battery Charger - DC X1
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 13598848
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F Power Pack 2000 (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
35 |
OG |
3966 |
High Voltage Battery 3 (+) |
I |
- |
| B |
35 |
OG/BK |
3965 |
High Voltage Battery 3 (-) |
I |
- |
