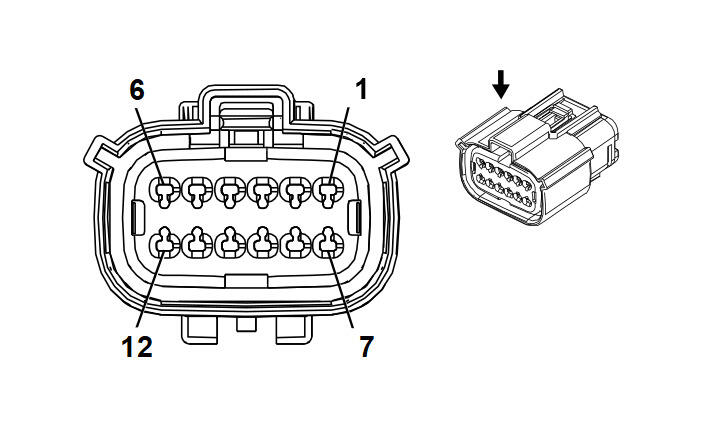

T18 Battery Charger X1
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 33472-1291
- Service Connector: 19352908
- Description: 12-Way F 150 MX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
19300432 |
J-35616-2A (GY) |
J-38125-217 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.5 |
BK |
150 |
Ground |
I |
- |
| 3 |
0.5 |
VT/WH |
3643 |
High Voltage Onboard Charging DC Voltage Sense Signal |
I |
- |
| 4 |
0.5 |
YE/GY |
3645 |
High Voltage Onboard Charging Control |
I |
- |
| 5 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.5 |
RD/YE |
740 |
Battery Positive Voltage |
I |
- |
| 10 |
0.5 |
GN/GY |
3644 |
High Voltage Onboard Charging AC Voltage Sense Signal |
I |
- |
| 11 |
0.5 |
BU/YE |
3646 |
High Voltage Onboard Charging Enable |
I |
- |
| 12 |
- |
- |
- |
Not Occupied |
- |
- |
