M15 Drive Motor
 Courtesy of GENERAL MOTORS COMPANY
|

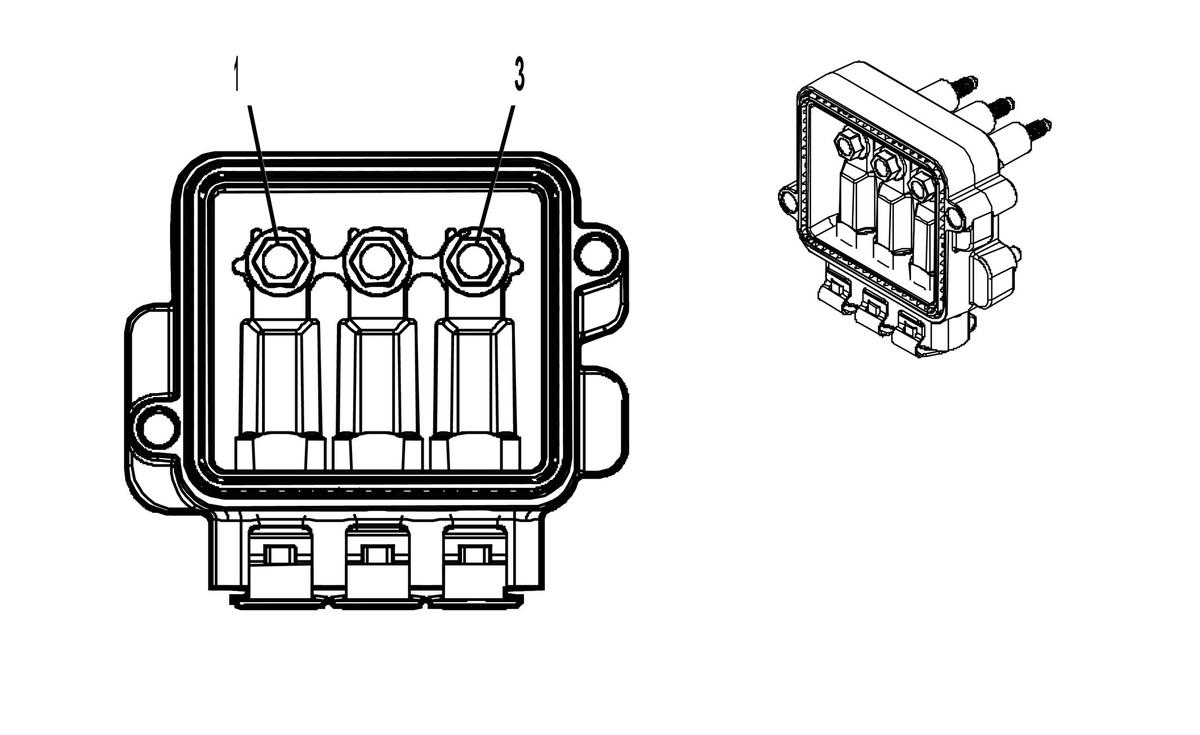

Connector Part Information
- Harness Type: High Voltage
- OEM Connector: EMH-045C
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 3-Way High Voltage Ring Terminal Housing (Aluminum)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
OG |
3770 |
MGU Phase W Control |
I |
- |
| 2 |
- |
OG |
3771 |
MGU Phase V Control |
I |
- |
| 3 |
- |
OG |
3772 |
MGU Phase U Control |
I |
- |
