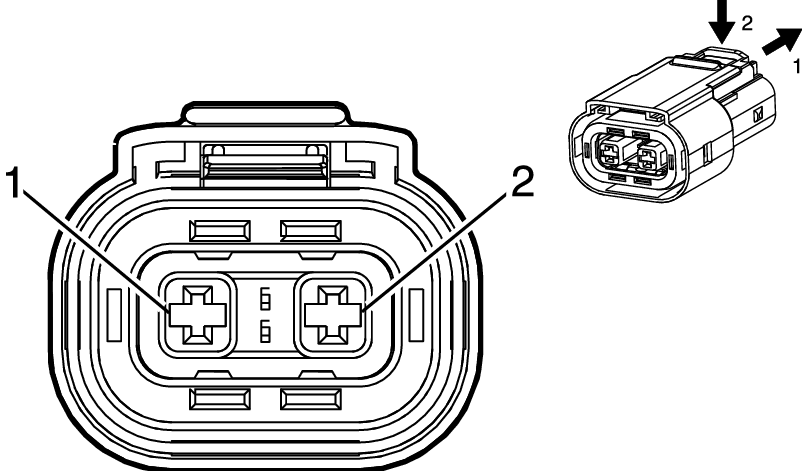

K10 Coolant Heater Control Module X1
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: High Voltage
- OEM Connector: 13589514
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F HVA280-2PHI Series, Sealed (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
5 |
OG |
3970 |
High Voltage Battery 4 (+) |
I |
- |
| 2 |
5 |
OG/BK |
3969 |
High Voltage Battery 4 (-) |
I |
- |
