C1 Battery (-)

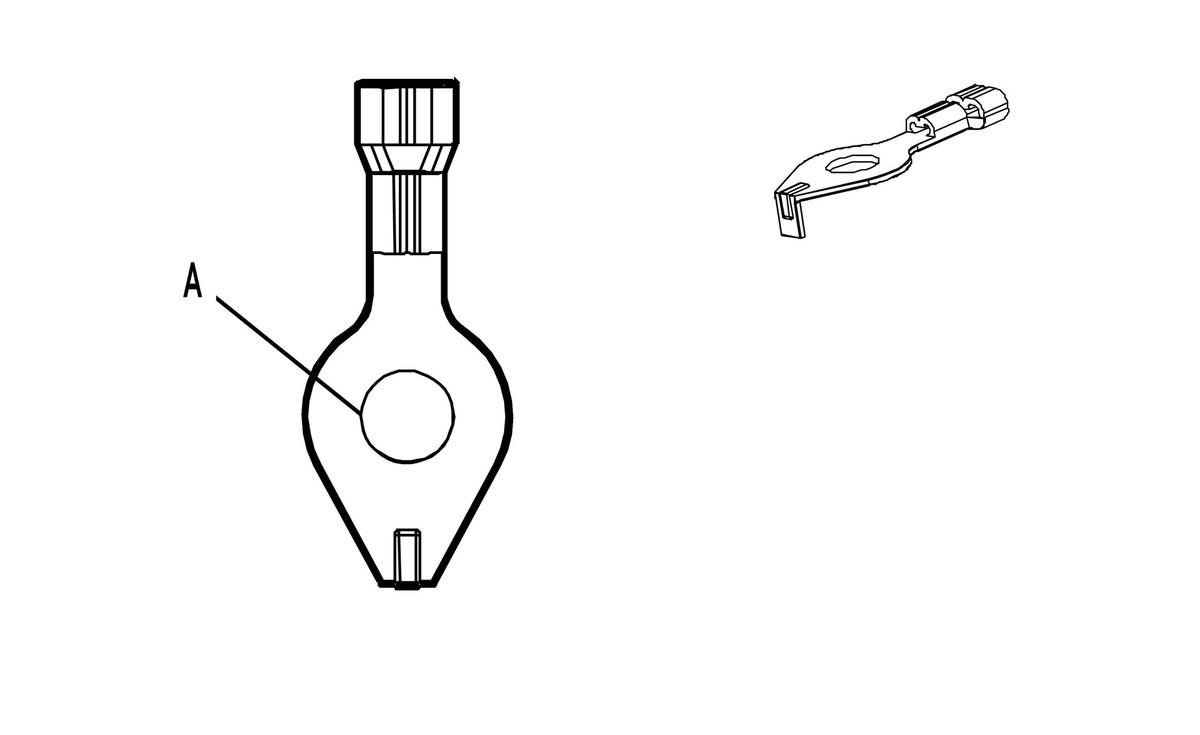

GM4663368Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Body
  • OEM Connector: ST711059-3
  • Service Connector: Service by Cable Assembly - See Part Catalog
  • Description: 1-Way Ring Terminal
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool
I Not Required No Tool Required No Tool Required
Pin Size Color Circuit Function Terminal Type ID Option
A 0.5 BK/WH 51 Signal Ground I -
