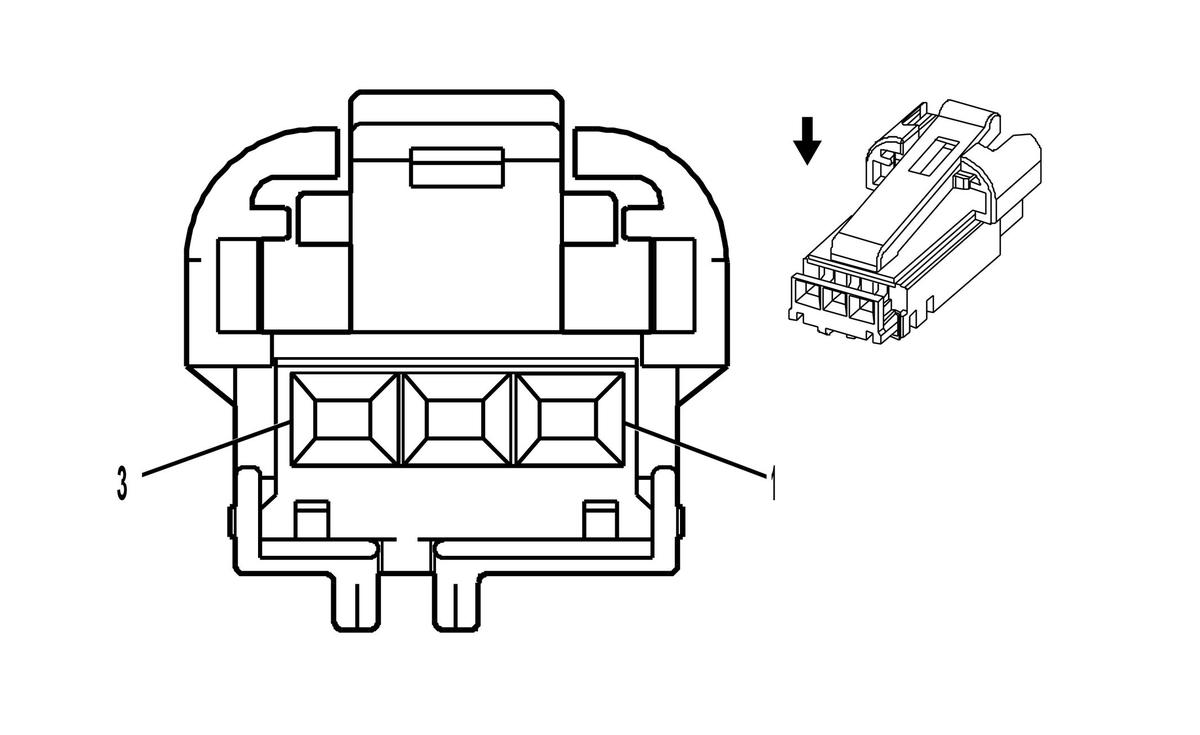

B7B Air Temperature Sensor - Duct Lower
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: HVAC
- OEM Connector: 31067-1010
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 0.64 GET Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN |
518 |
Lower Left Air Temperature Sensor Signal |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.5 |
BK/YE |
407 |
Sensor Low Reference |
I |
- |
