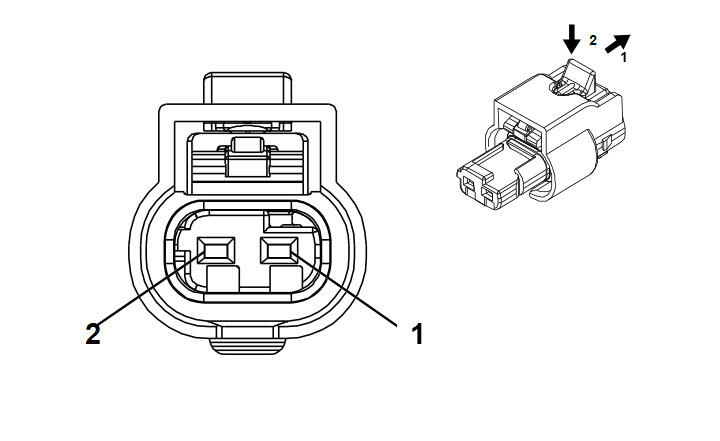

B59L Front Impact Sensor - Left (AYF)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 4-2272003-4
- Service Connector: 19354841
- Description: 2-Way F 1.2 MCON-CB Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG/YE |
354 |
Left Front Discriminating Sensor Signal |
I |
- |
| 2 |
0.5 |
BK/OG |
5045 |
Left Front Discriminating Sensor Low Reference |
I |
- |
