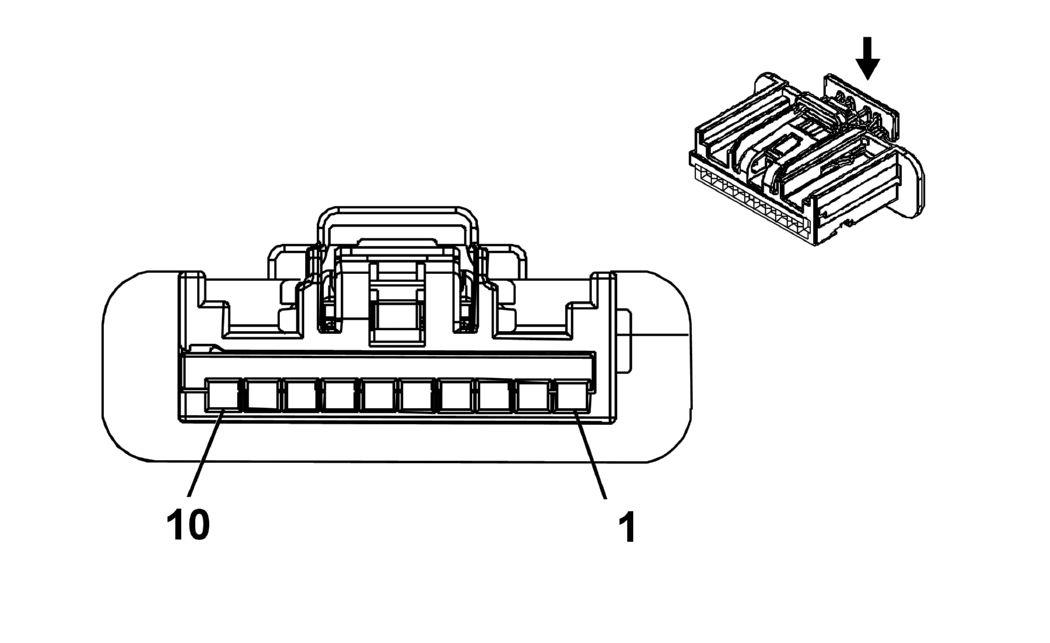

B15 Transmission Internal Mode Switch
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Transmission Internal Mode Switch
- OEM Connector: 33116161
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way F 0.64 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.5 |
BK |
3992 |
Internal Mode Switch Voltage Supply A |
I |
- |
| 5 |
0.5 |
BK |
5981 |
PRNDL A Signal |
I |
- |
| 6 |
0.5 |
BK |
5983 |
PRNDL C Signal |
I |
- |
| 7 |
0.5 |
BK |
4169 |
PRNDL S Signal |
I |
- |
| 8 |
0.5 |
BK |
5982 |
PRNDL B Signal |
I |
- |
| 9 |
0.5 |
BK |
4168 |
PRNDL P Signal |
I |
- |
| 10 |
0.5 |
BK |
3991 |
Internal Mode Switch Voltage Supply B |
I |
- |
