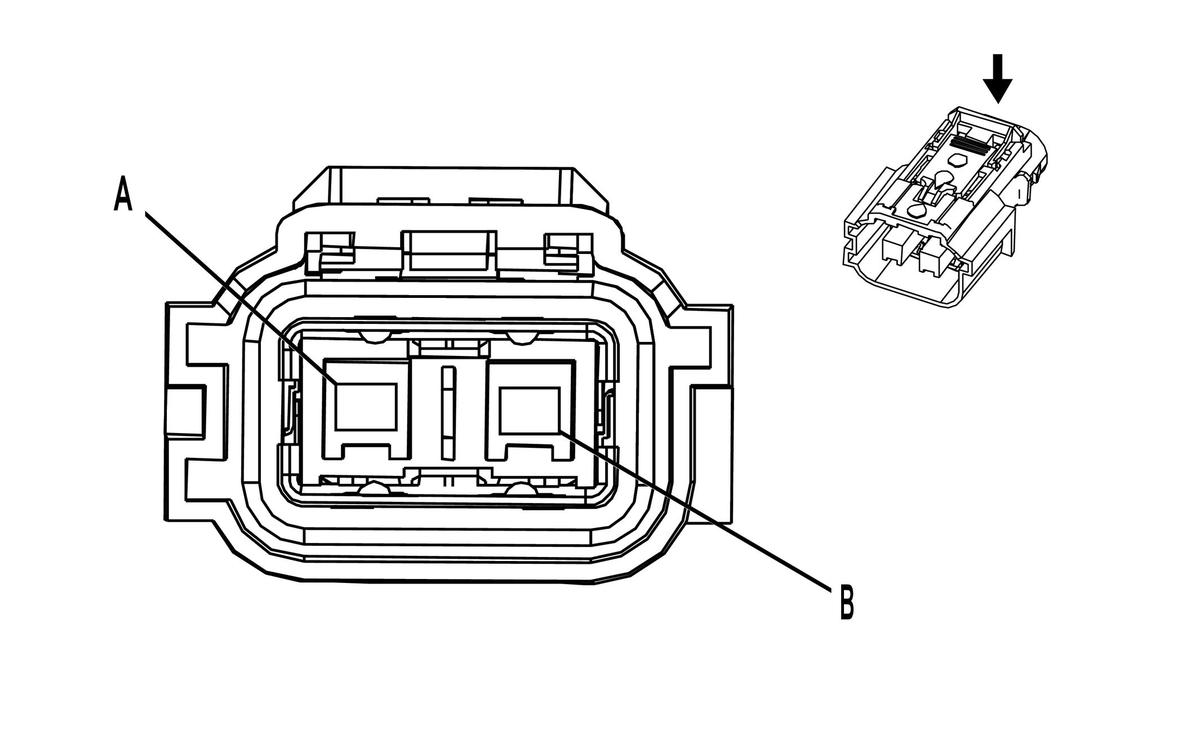

A4 Hybrid/EV Battery Pack X4
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Hybrid/EV Battery
- OEM Connector: 13511582
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 280 Metri-Pack Series, Sealed (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
- |
OG |
2427 |
High Voltage Battery 6 (+) |
I |
- |
| B |
- |
OG/BK |
2429 |
High Voltage Battery 6 (-) |
I |
- |
