Right Side Engine Compartment Harness Routing

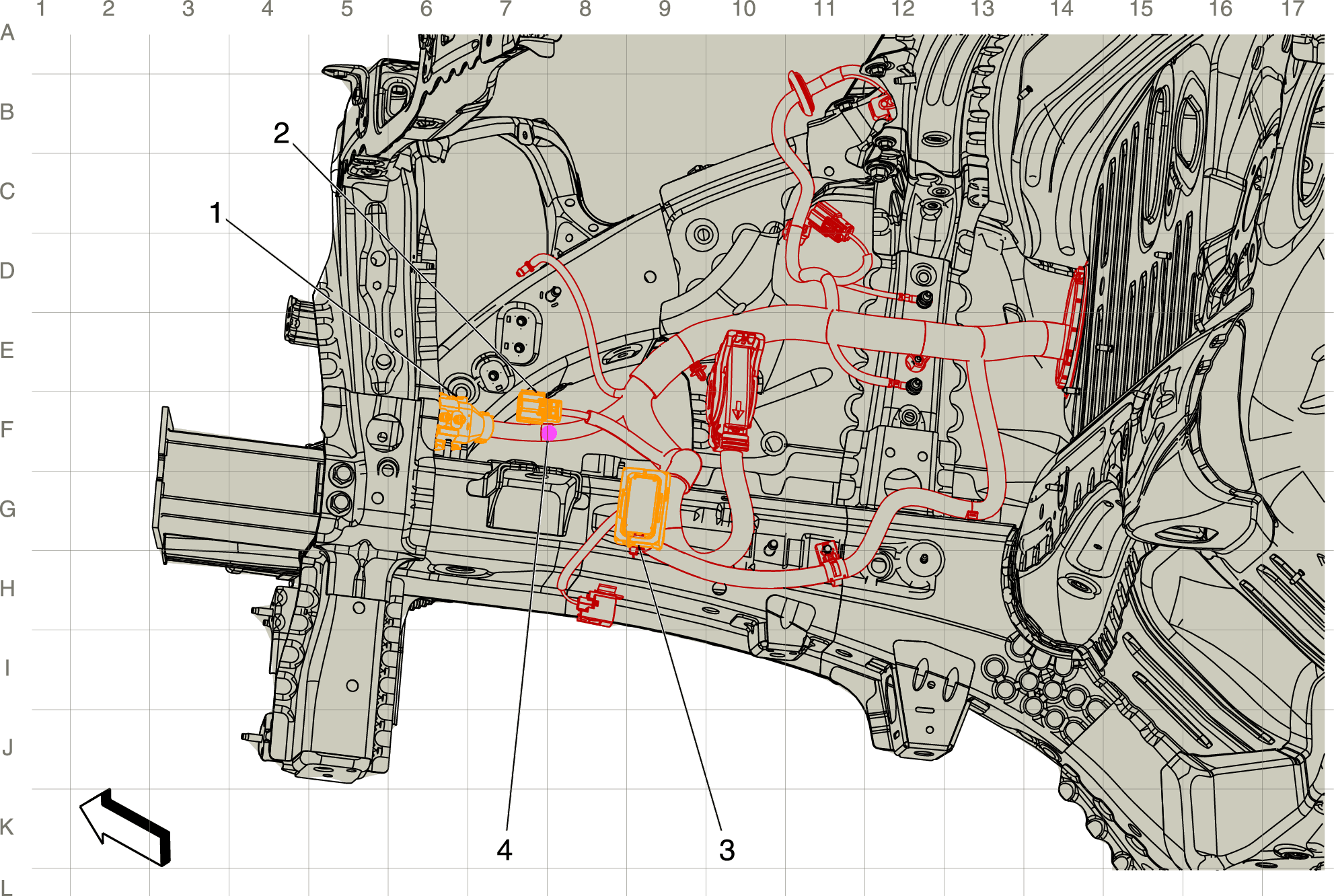

GM4531521Courtesy of GENERAL MOTORS COMPANY
Items
1. X107 Body Harness to Forward Lamp Harness X107 Body Harness to Forward Lamp Harness
2. X108 Body Harness to Forward Lamp Harness X108 Body Harness to Forward Lamp Harness
3. X105 Body Harness to Engine Harness X105 Body Harness to Engine Harness
4. J129
