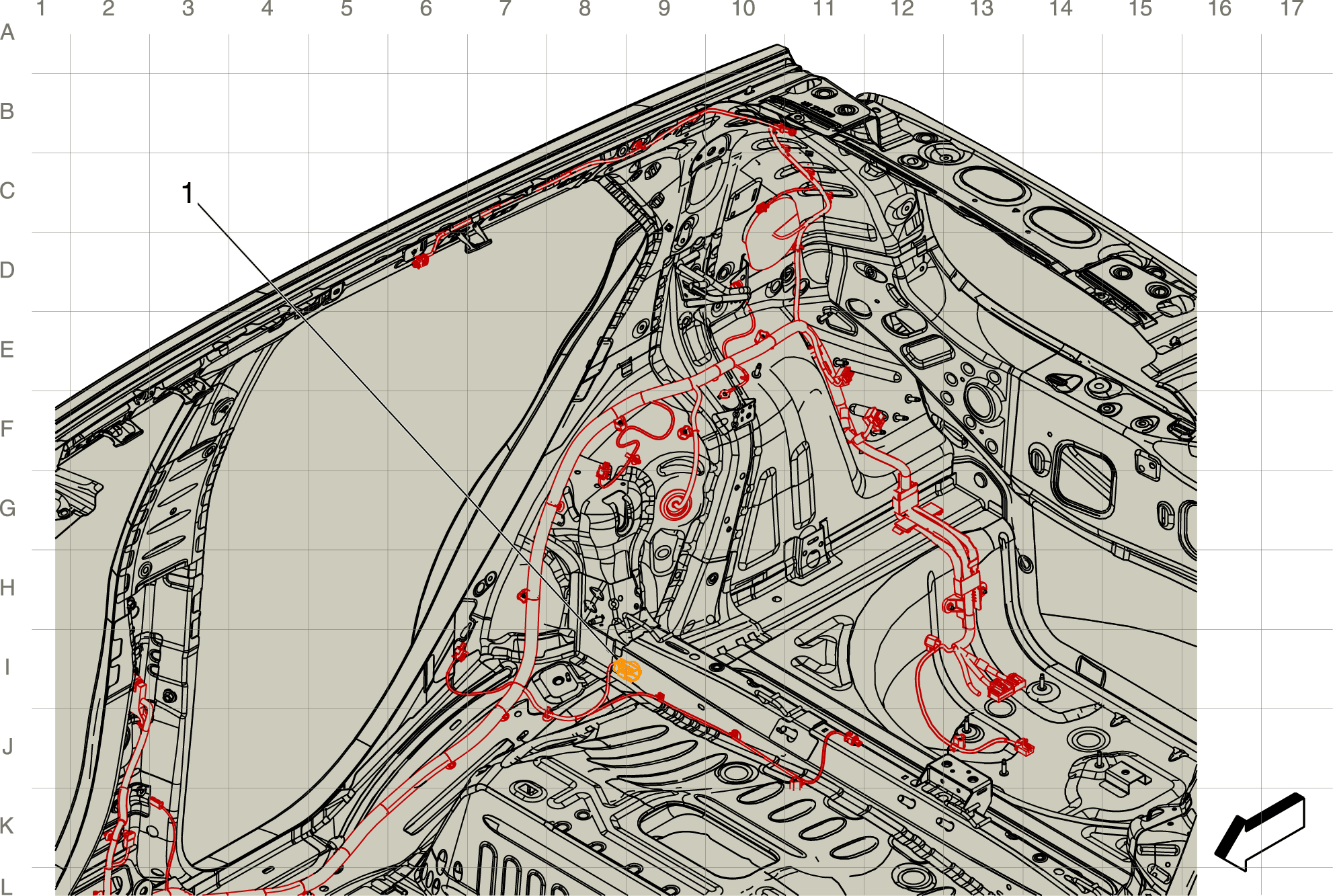

Right Rear of Passenger Compartment Harness Routing

GM4531544Courtesy of GENERAL MOTORS COMPANY
Items
1. X360 Right Rear Seat Harness to Body Harness X360 Right Rear Seat Harness to Body Harness (KA6)
