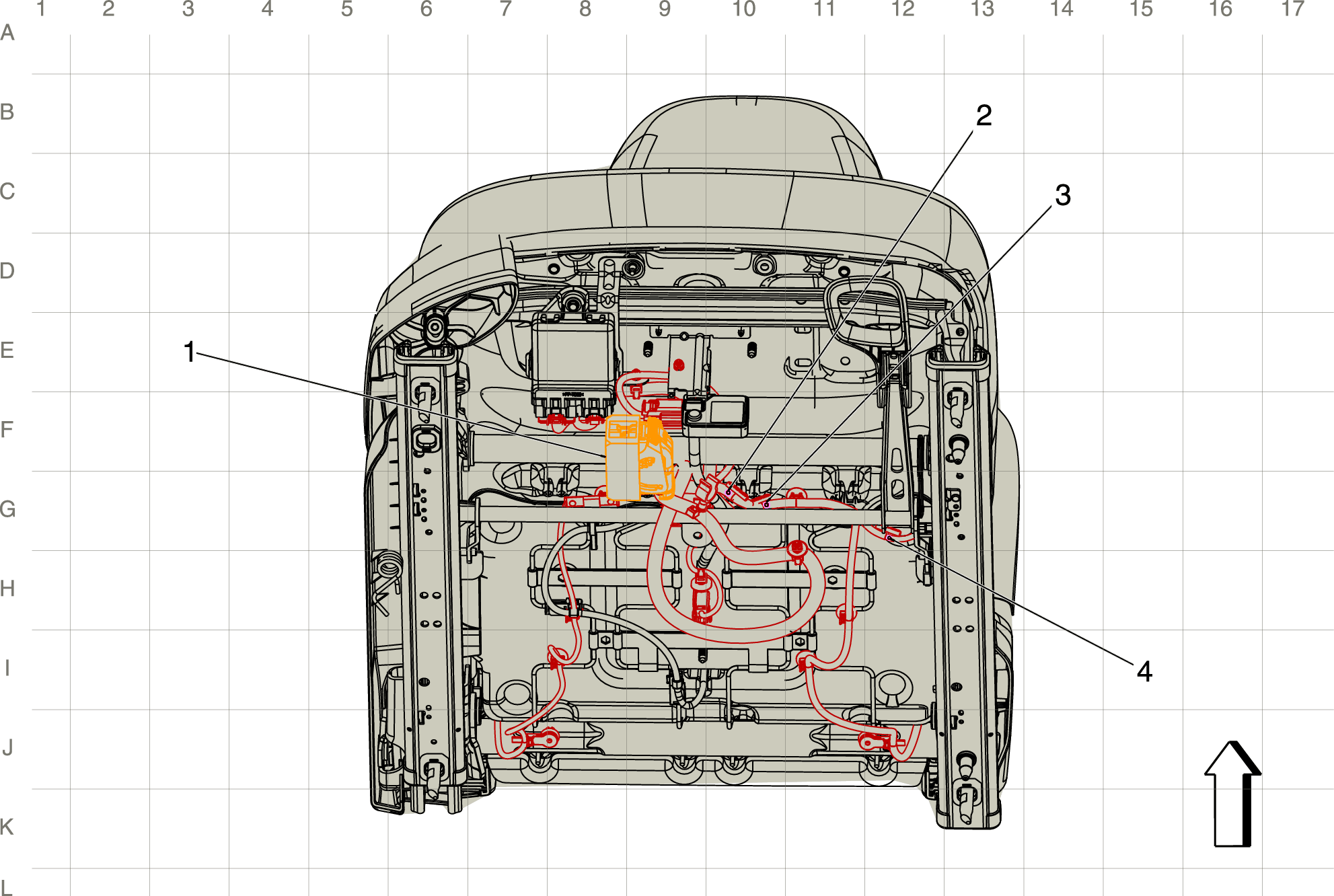

Passenger Seat Harness Routing

GM4535301Courtesy of GENERAL MOTORS COMPANY
Items
1. X320 Passenger Seat Harness to Body Harness X320 Passenger Seat Harness to Body Harness
2. J341
3. J342 Passenger Seat Harness (KA1)
4. J347 Passenger Seat Harness
