Passenger Door Harness Routing

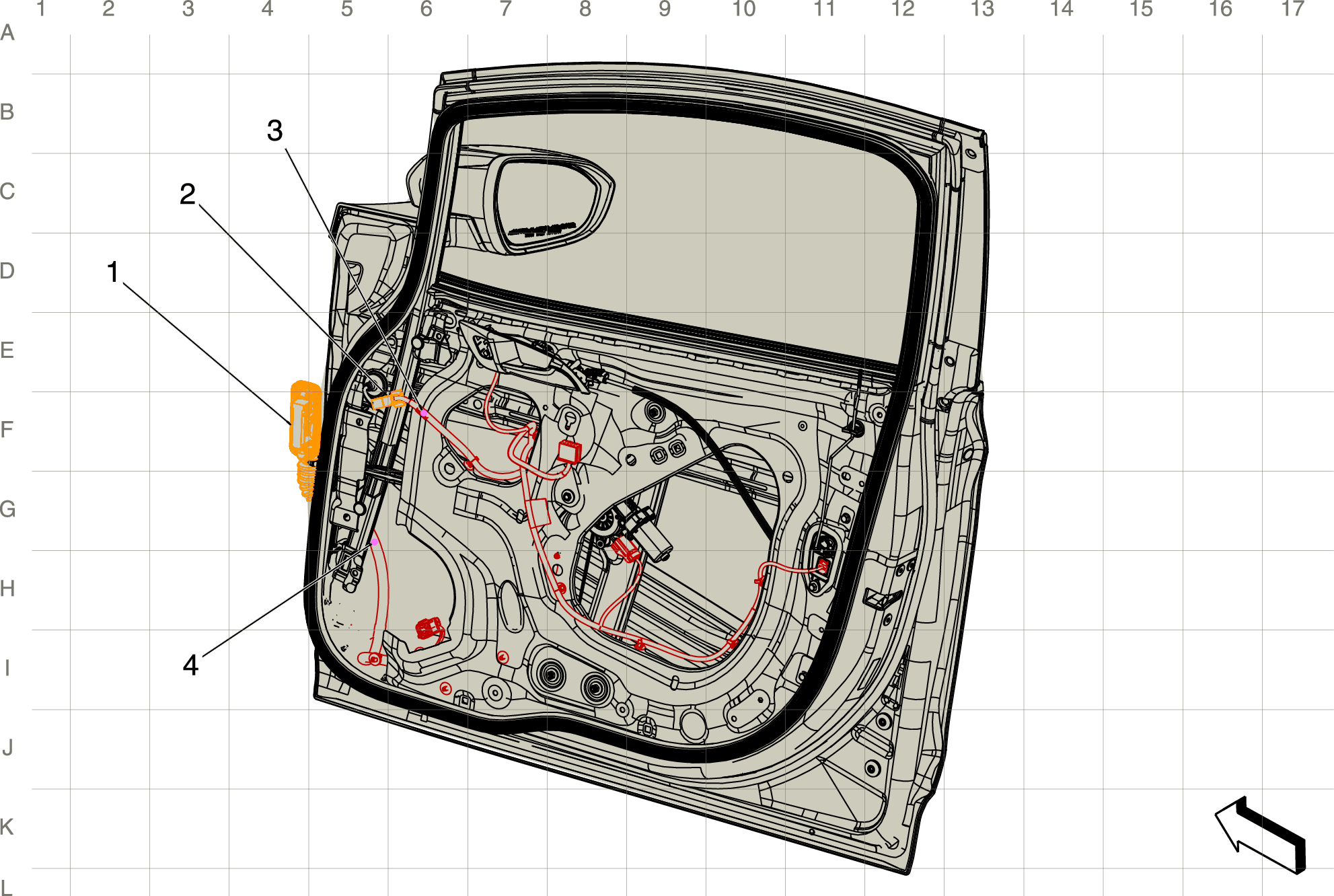

GM4535282Courtesy of GENERAL MOTORS COMPANY
Items
1. X600 Passenger Door Harness to Body Harness X600 Passenger Door Harness to Body Harness
2. X610 Passenger Door Harness to Passenger Outside Rearview Mirror Harness X610 Passenger Outside Rearview Mirror Harness to Passenger Door Harness
3. J600 Passenger Door Harness
4. J247
