Left Rear of Passenger Compartment Harness Routing

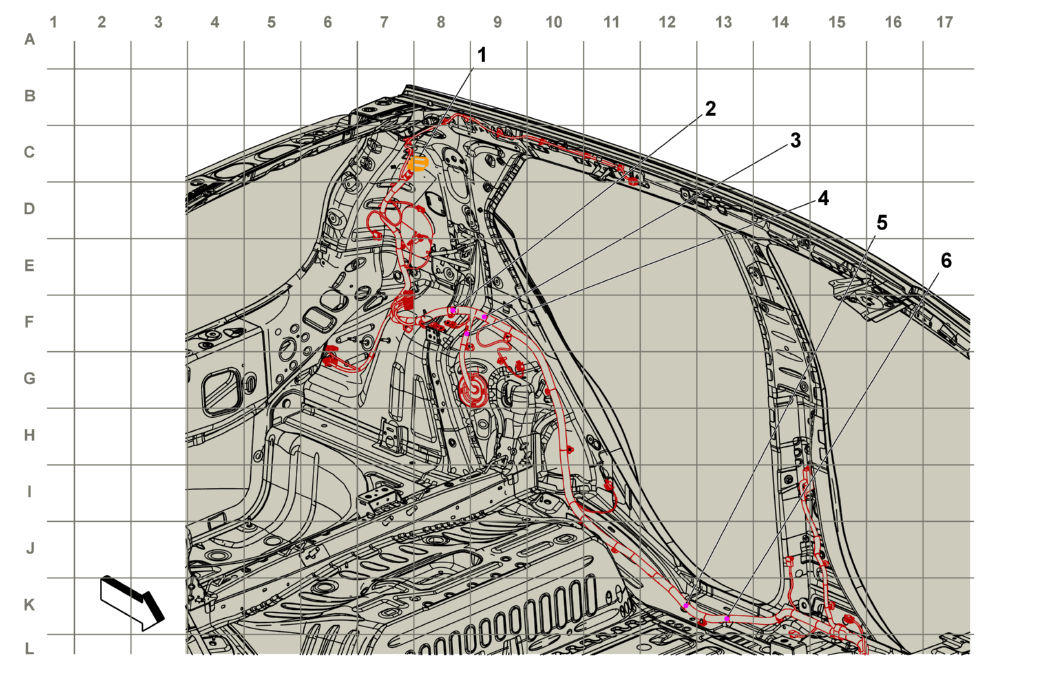

GM4531533Courtesy of GENERAL MOTORS COMPANY
Items
1. X900 Liftgate Extension Harness to Body Harness X900 Liftgate Jumper Harness to Body Harness
2. J407 Rear Fascia Harness
3. J308 Body Harness
4. J309 Body Harness
5. J321 Body Harness
6. J320 Body Harness
