Left Front of Engine Compartment Harness Routing

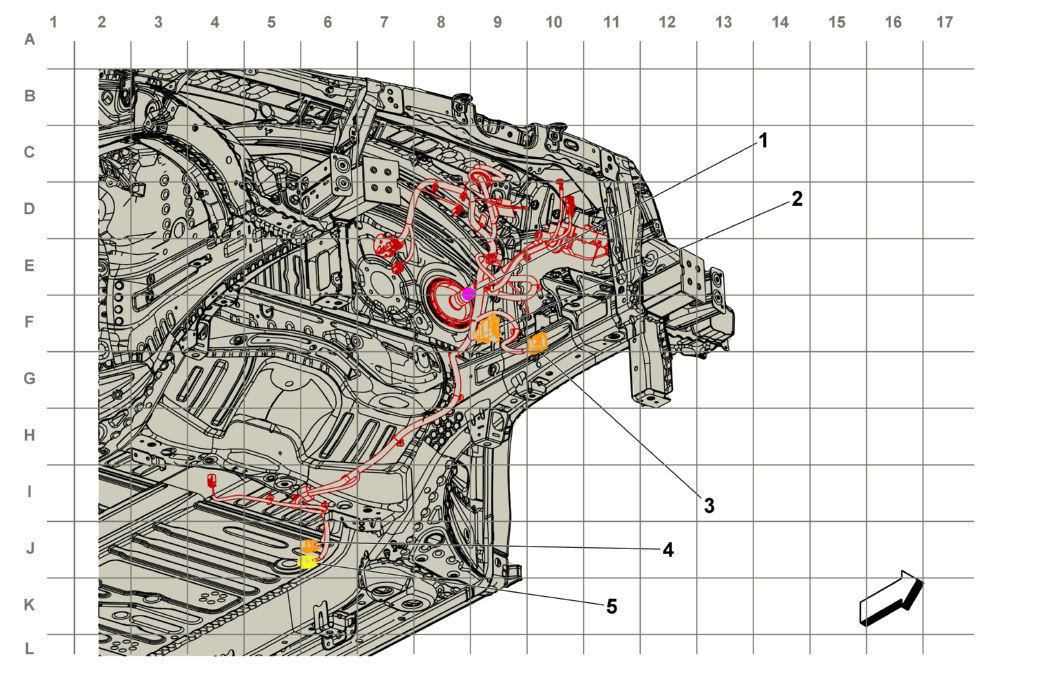

GM4531524Courtesy of GENERAL MOTORS COMPANY
Items
1. J128 Body Harness
2. X106 Body Harness to Engine Harness X106 Body Harness to Engine Harness
3. X117 Charge Receptacle Harness to Body Harness X117 Charge Receptacle Harness to Body Harness
4. X357 Body Harness to Battery Harness X357 Body Harness to Battery Cable Harness
5. X358 Body Harness to Battery Harness X358 Body Harness to Battery Harness
