Front of Drive Motor Harness Routing

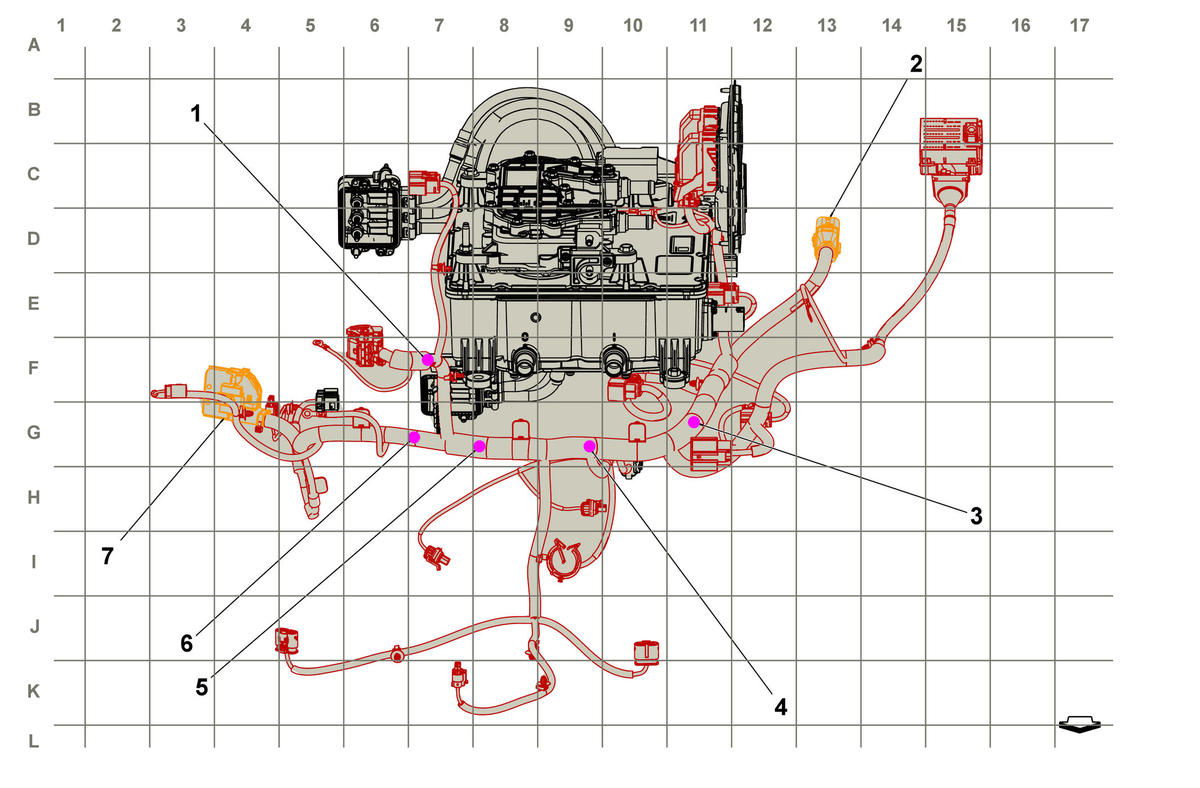

GM4539875Courtesy of GENERAL MOTORS COMPANY
Items
1. J108 Engine Harness
2. X106 Body Harness to Engine Harness X106 Body Harness to Engine Harness
3. J101 Engine Harness
4. J123 Engine Harness
5. J122 Engine Harness
6. J100 Engine Harness
7. X105 Body Harness to Engine Harness X105 Body Harness to Engine Harness
