Front Fascia Harness Routing

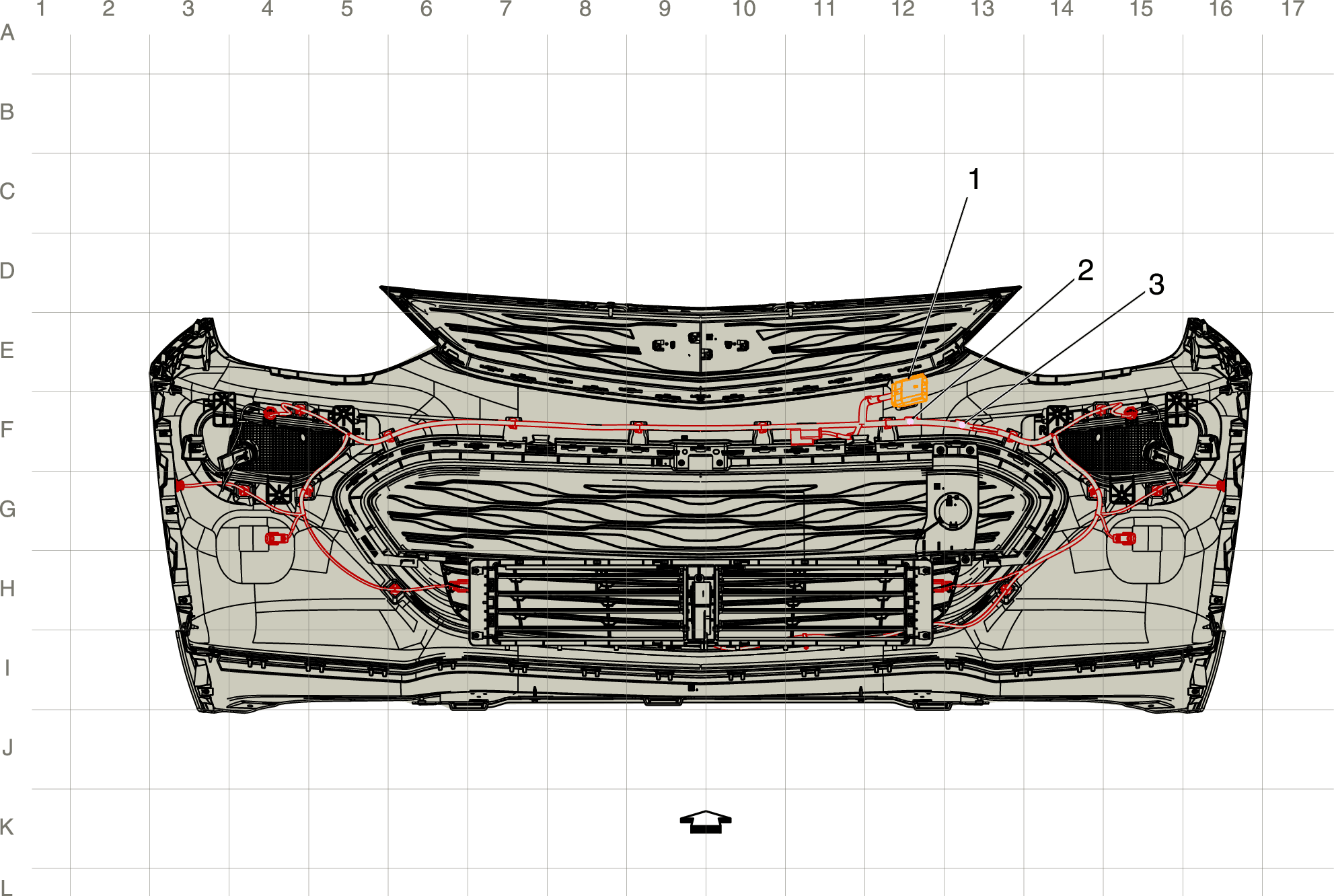

GM4531538Courtesy of GENERAL MOTORS COMPANY
Items
1. X101 Forward Lamp Harness to Front Fascia X101 Forward Lamp Harness to Front Bumper Harness (-UD5/UFQ/UVH)X101 Forward Lamp Harness to Front Bumper Harness (UD5/UFQ/UVH)
2. J124 Front Fascia Harness
3. J113 Front Fascia Harness
