Forward Lamp Harness Routing

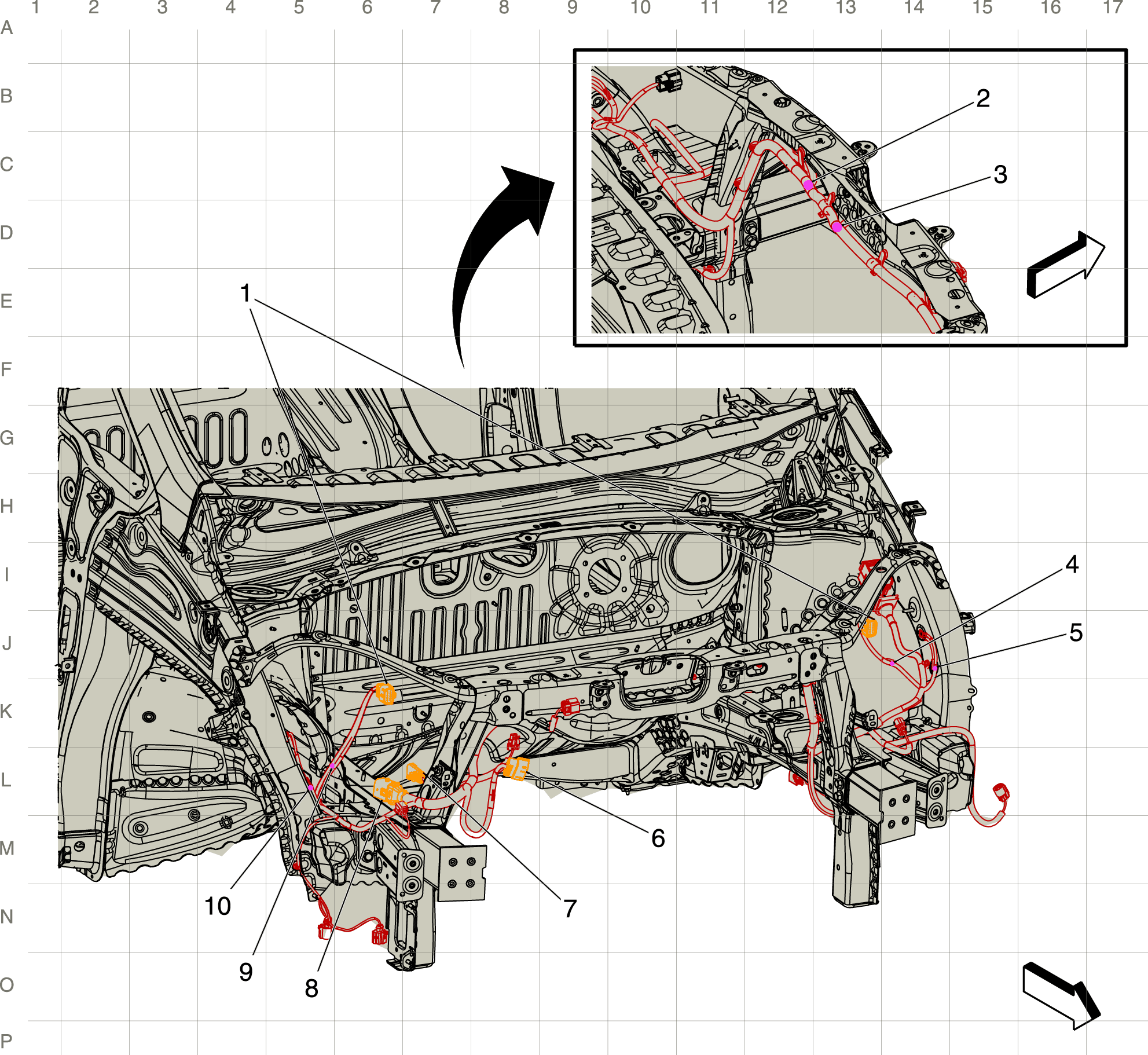

GM4535305Courtesy of GENERAL MOTORS COMPANY
Items
1. X110 Forward Lamp Harness to Left Headlight Assembly X110 Forward Lamp Harness to Left Headlamp Harness (-TR6)X110 Forward Lamp Harness to Left Headlamp Harness (TR6)
2. J111 Forward Lamp Harness
3. J112 Forward Lamp Harness
4. J109 Forward Lamp Harness
5. J102 Forward Lamp Harness
6. X101 Forward Lamp Harness to Front Fascia X101 Forward Lamp Harness to Front Bumper Harness (-UD5/UFQ/UVH)X101 Forward Lamp Harness to Front Bumper Harness (UD5/UFQ/UVH)
7. X108 Body Harness to Forward Lamp Harness X108 Body Harness to Forward Lamp Harness
8. X107 Body Harness to Forward Lamp Harness X107 Body Harness to Forward Lamp Harness
9. J110 Forward Lamp Harness
10. J103 Forward Lamp Harness
