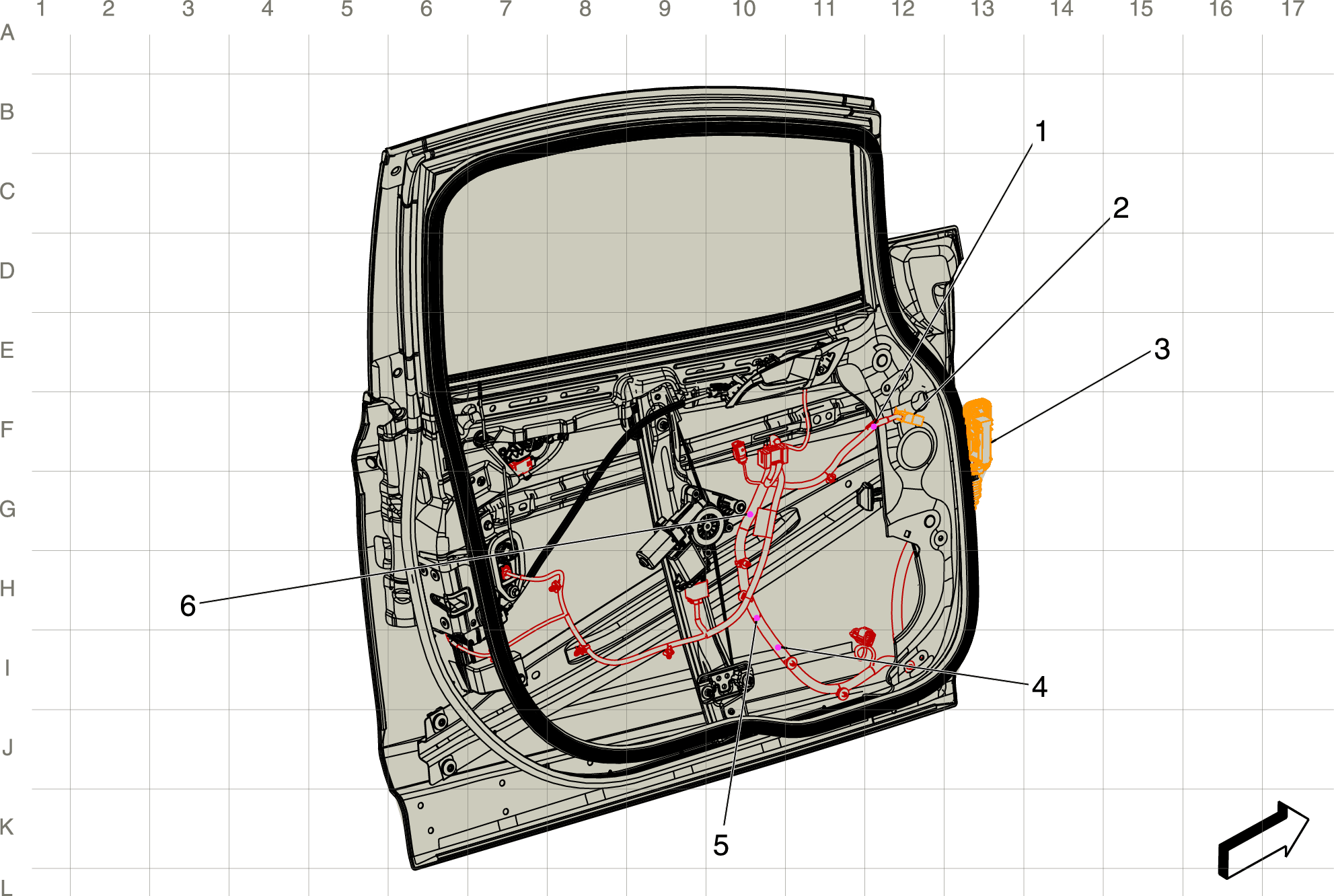

Driver Door Harness Routing
| Items |
|---|
| 1. J502 Driver Door Harness |
| 2. X510 Driver Door Harness to Driver Outside Rearview Mirror Harness X510 Driver Outside Rearview Mirror Harness to Driver Door Harness |
| 3. X500 Driver Door Harness to Body Harness X500 Driver Door Harness to Body Harness |
| 4. J501 Driver Door Harness |
| 5. J500 Driver Door Harness |
| 6. J504 Driver Door Harness |
