Center Console Harness Routing

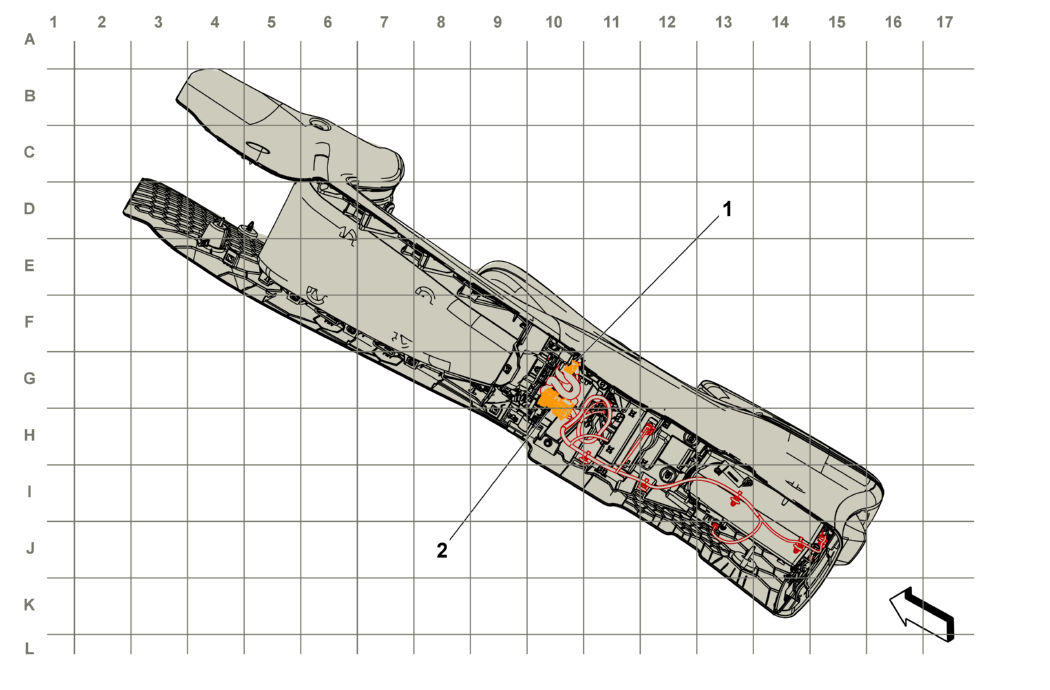

GM4527585Courtesy of GENERAL MOTORS COMPANY
Items
1. X212 Instrument Panel Harness to Floor Console Harness X212 Instrument Panel Harness to Center Console Harness
2. X300 Body Harness to Floor Console Harness X300 Center Console Harness to Body Harness
