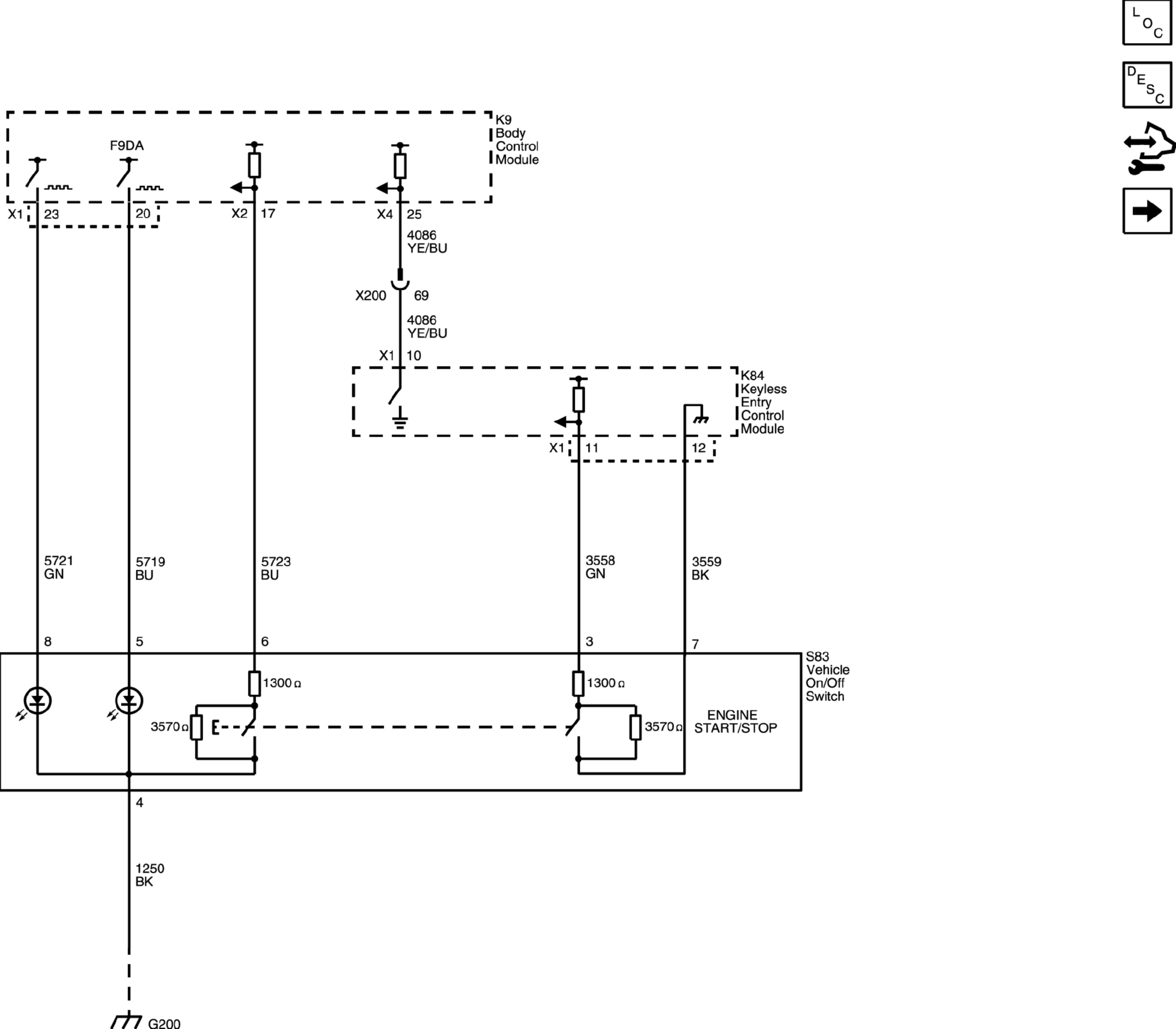

Home >> Chevrolet >> 2018 >> Bolt EV LT >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Wiring Harness Routing And Wiring Schematic Diagrams >> Power Moding Wiring Schematics >> Ignition Mode Switch
