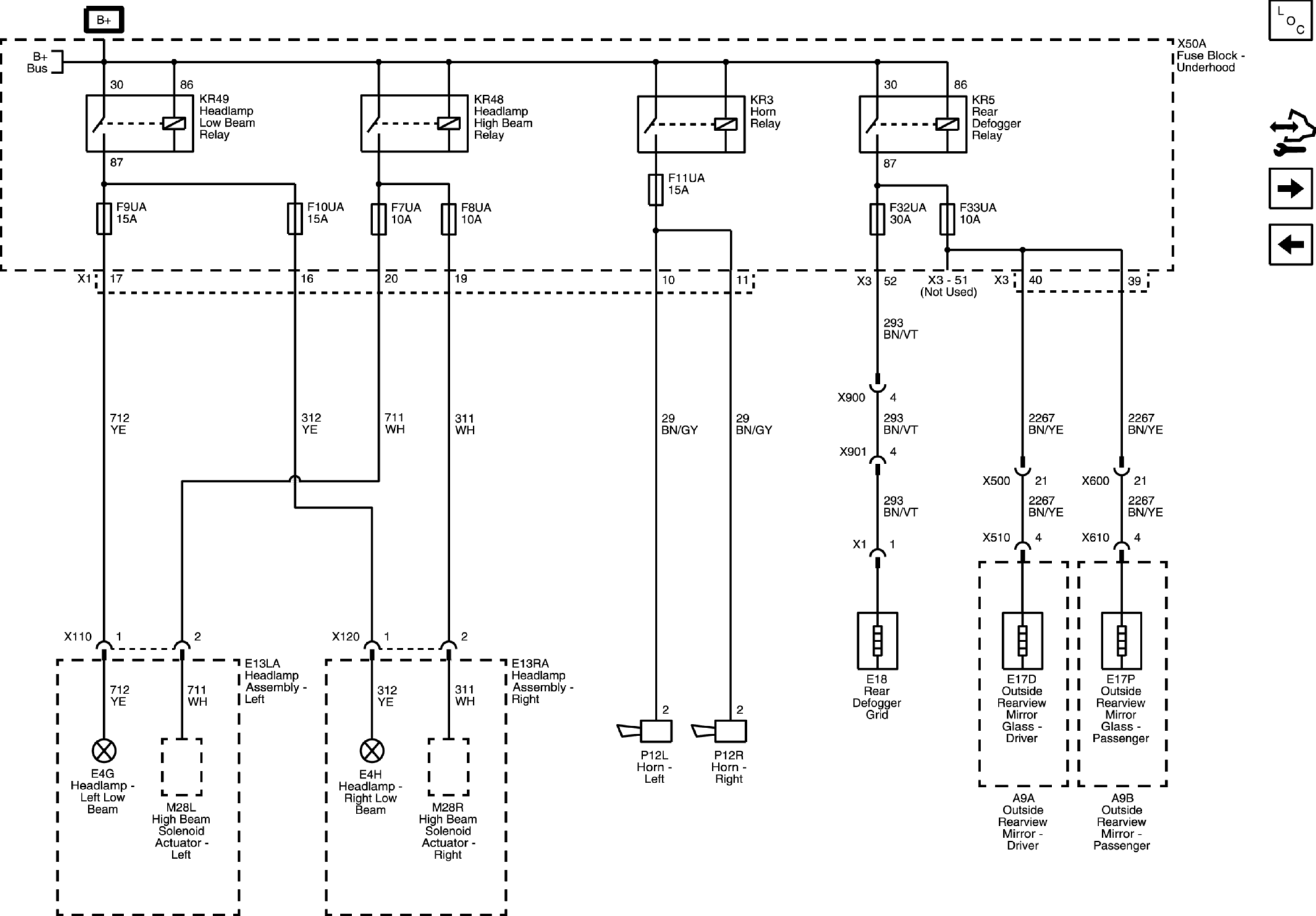

F7UA, F8UA, F9UA, F10UA, F11UA, F32UA, and F33UA Fuses

GM4811620

Courtesy of GENERAL MOTORS COMPANY
