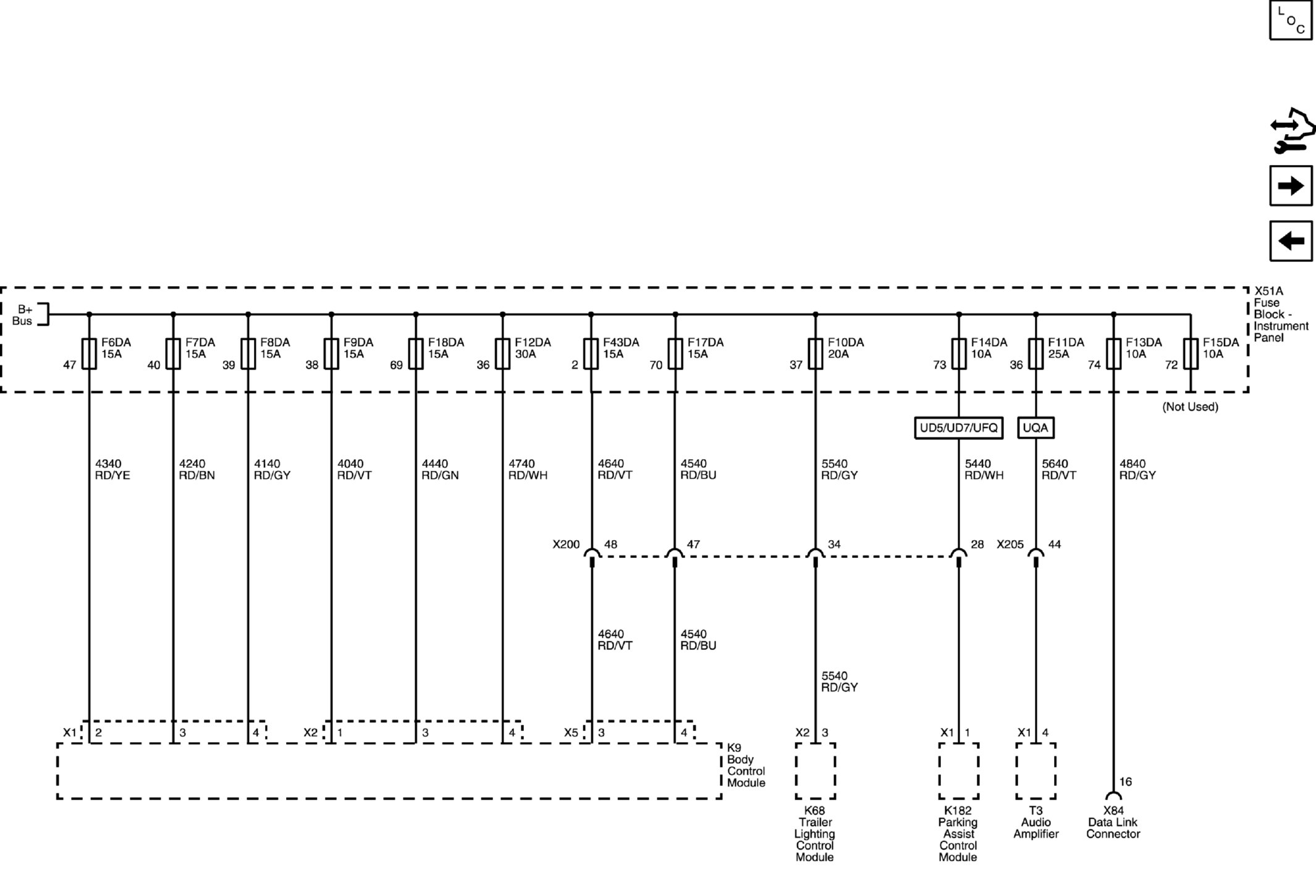

F6DA, F7DA, F8DA, F9DA, F10DA, F11DA, F12DA, F13DA, F14DA, F15DA, F17DA, F18DA, and F43DA Fuses

GM4811629

Courtesy of GENERAL MOTORS COMPANY
