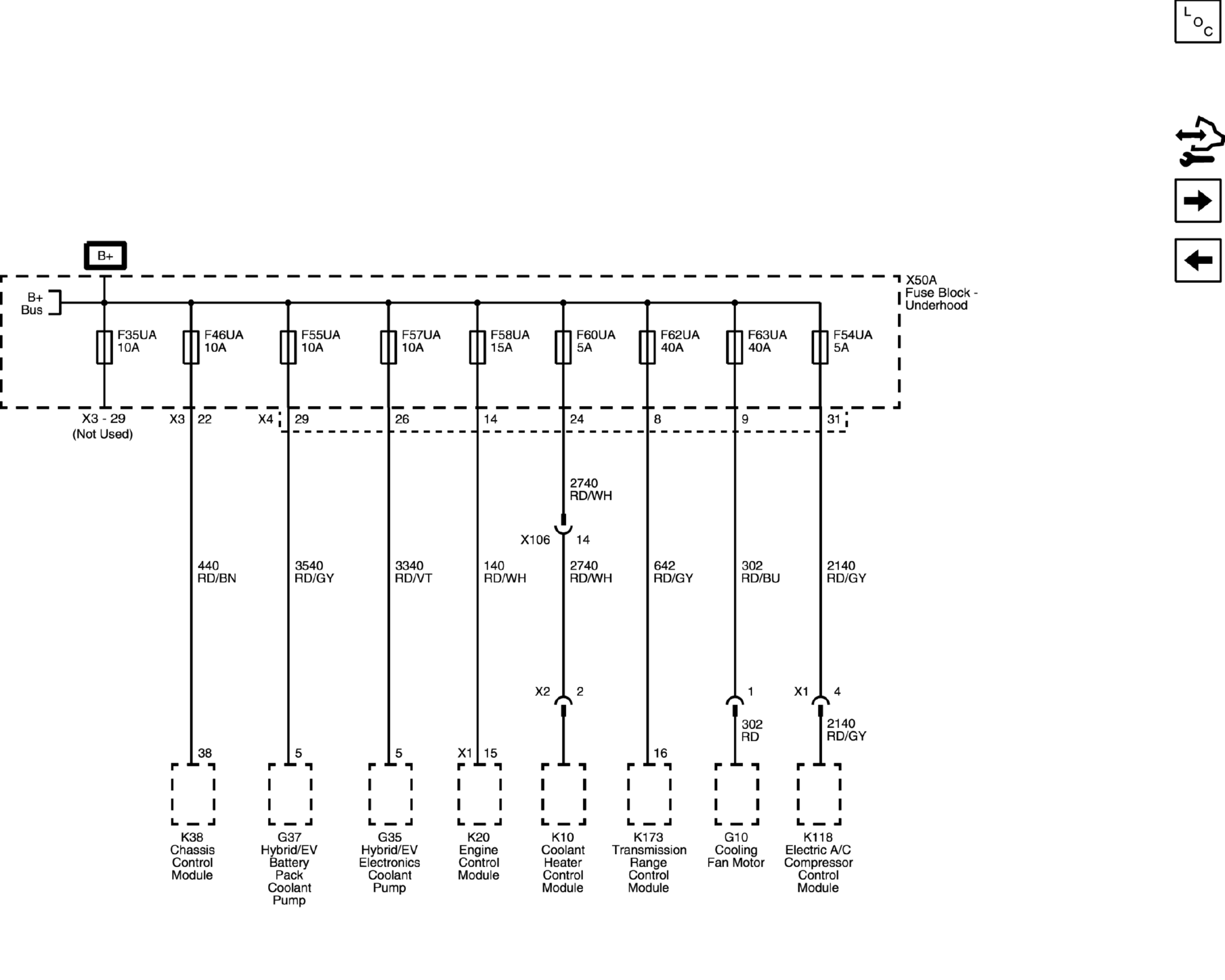

F35UA, F46UA, F54UA, F55UA, F57UA, F58UA, F60UA, F62UA and F63UA Fuses

GM4811626

Courtesy of GENERAL MOTORS COMPANY
