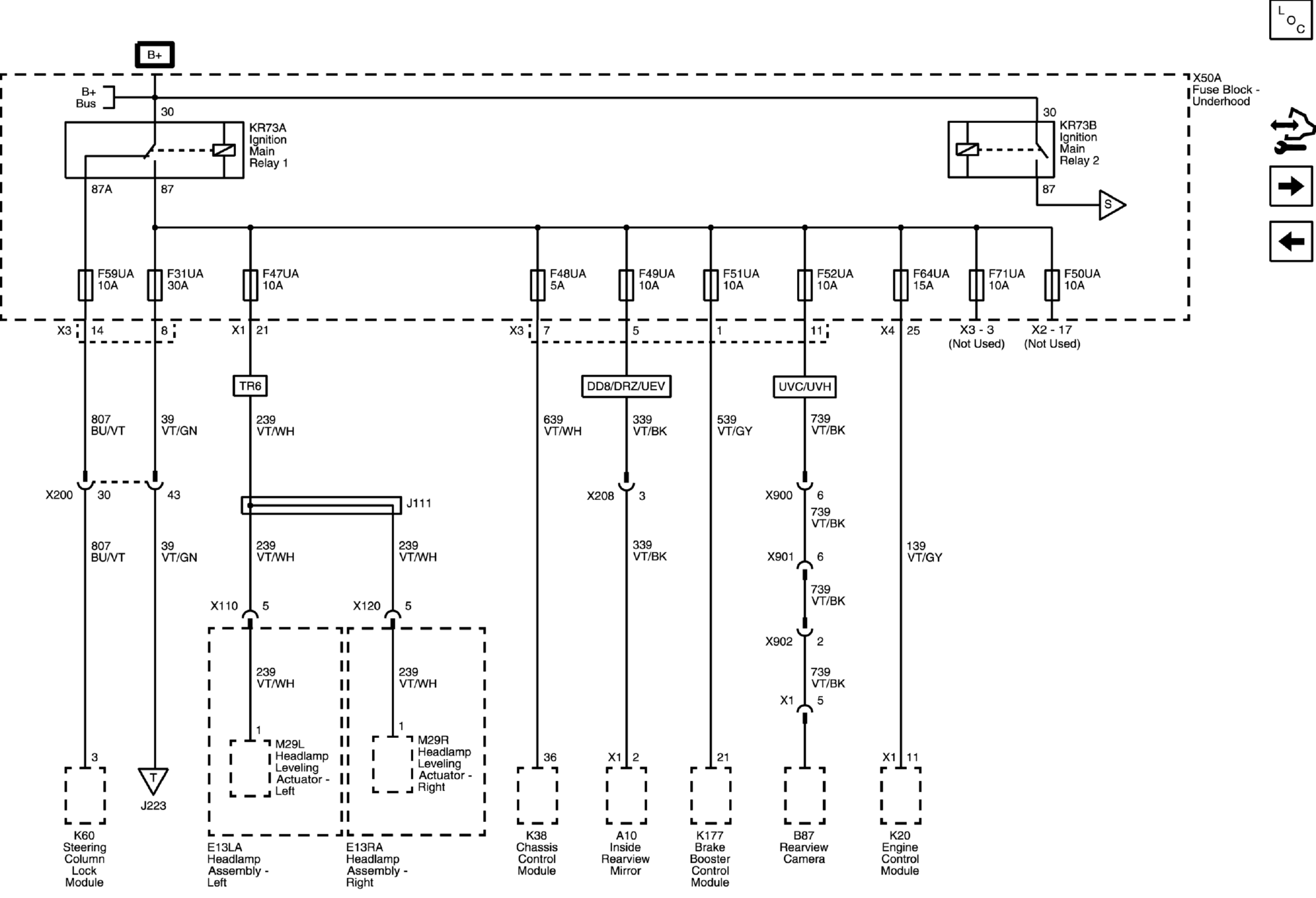

F31UA, F47UA, F48UA, F49UA, F51UA, F52UA, F59UA, F64UA, and F71UA Fuses

GM4811624

Courtesy of GENERAL MOTORS COMPANY
