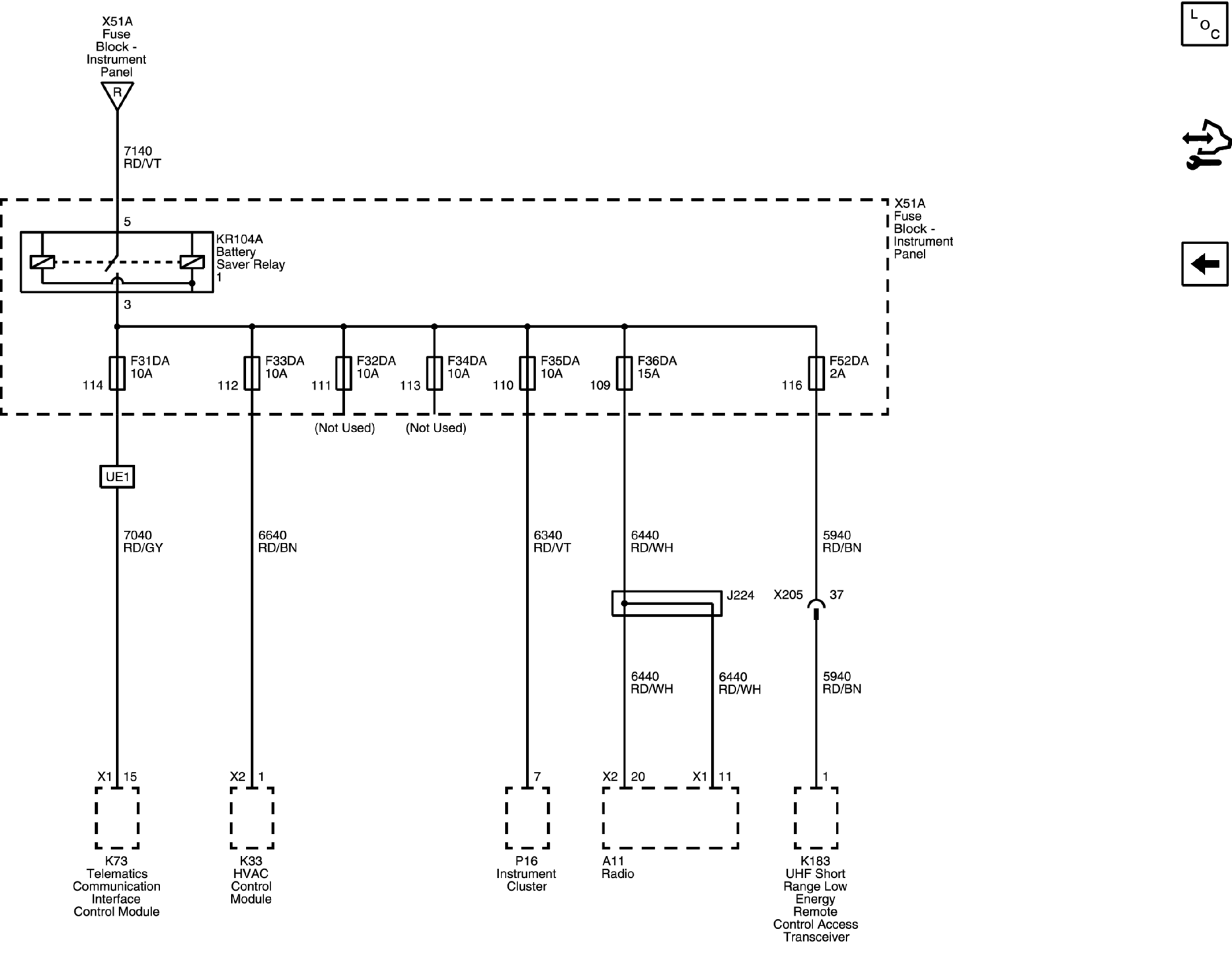

F31DA, F32DA, F33DA, F34DA, F35DA, F36DA, and F52DA Fuses

GM4811633

Courtesy of GENERAL MOTORS COMPANY
