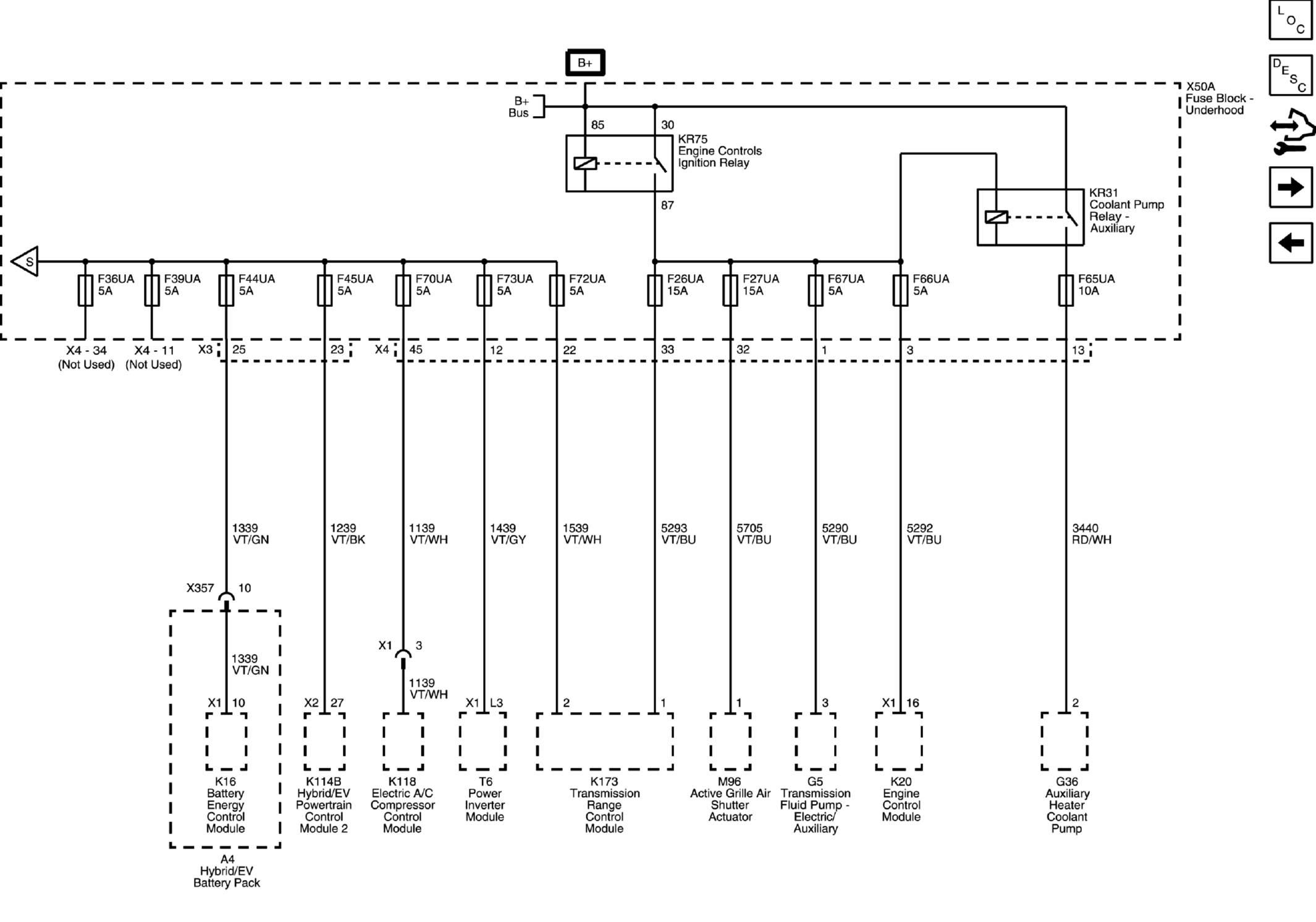

F26UA, F27UA, F36UA, F39UA, F44UA, F45UA, F54UA, F65UA, F66UA, F67UA, F70UA, F72UA and F73UA

GM4811623

Courtesy of GENERAL MOTORS COMPANY
