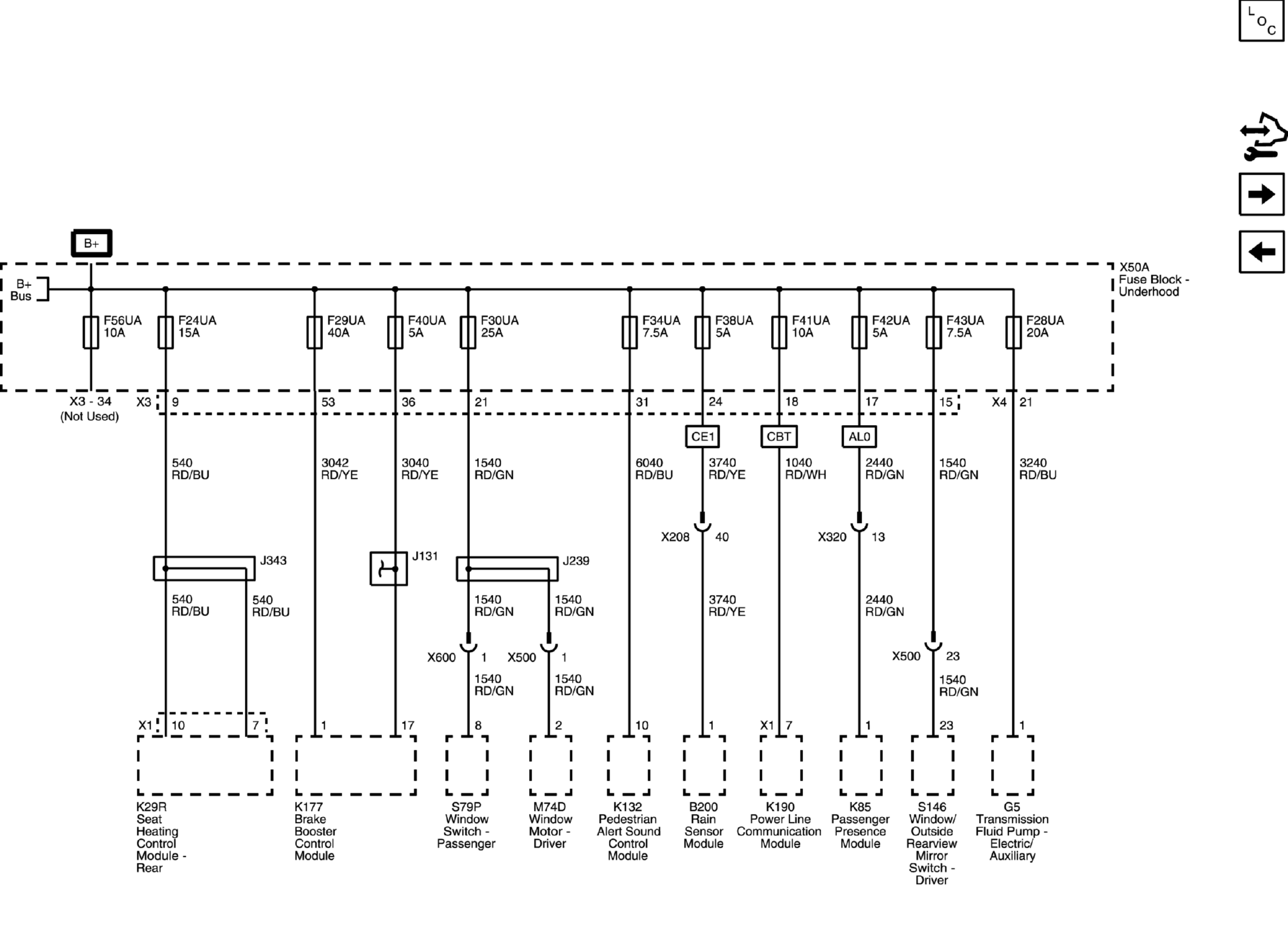

F24UA, F28UA, F29UA, F30UA, F34UA, F38UA, F40UA, F41UA, F42UA, F43UA, F50UA, and F56UA Fuses

GM4811622

Courtesy of GENERAL MOTORS COMPANY
