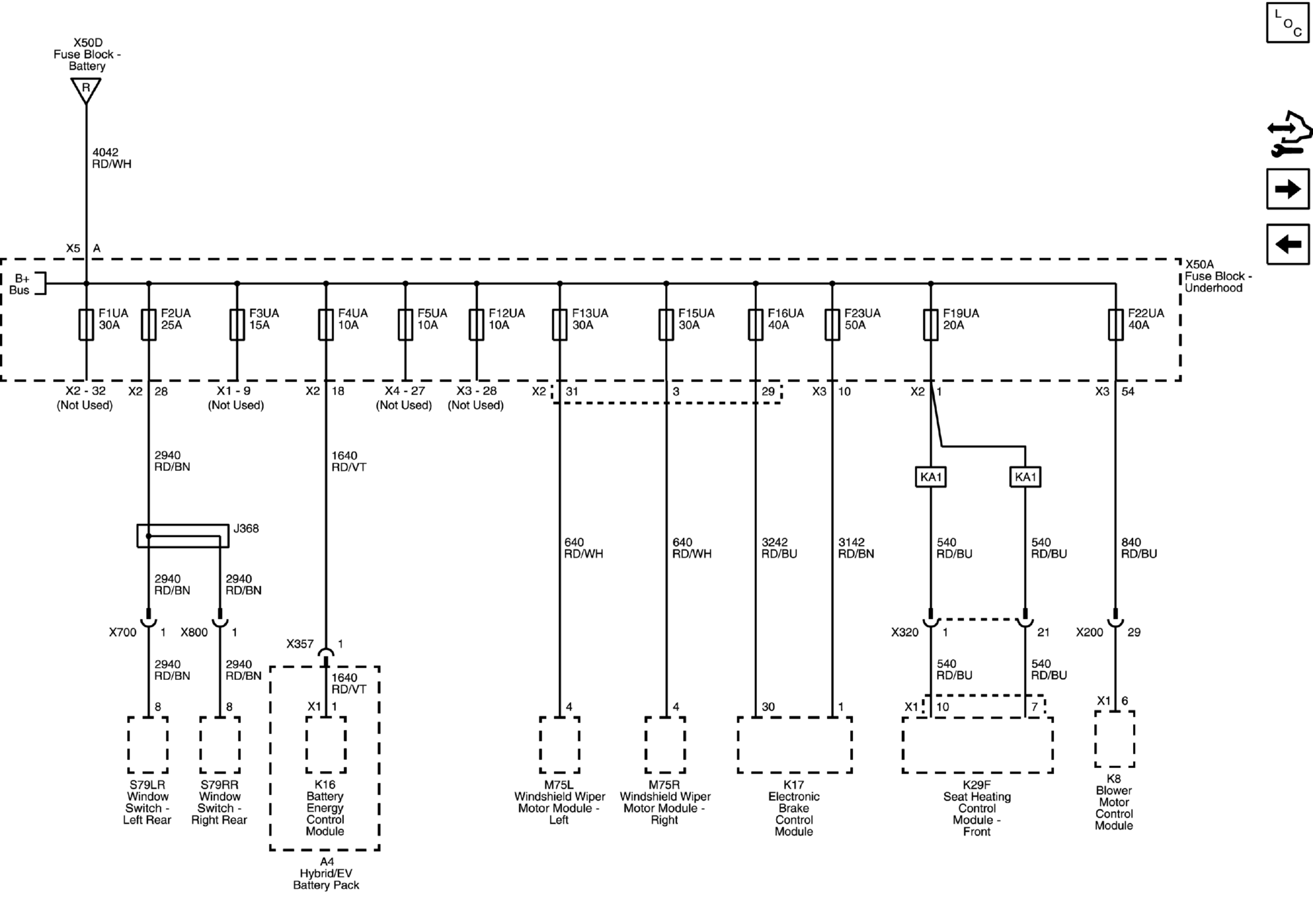

F1UA, F2UA, F3UA, F4UA, F5UA, F12UA, F13UA, F15UA, F16UA, F19UA, F22UA and F23UA Fuses

GM4811619

Courtesy of GENERAL MOTORS COMPANY
