Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams
>>
Wiring Harness Routing And Wiring Schematic Diagrams
>>
Power Distribution Wiring Schematics
>>

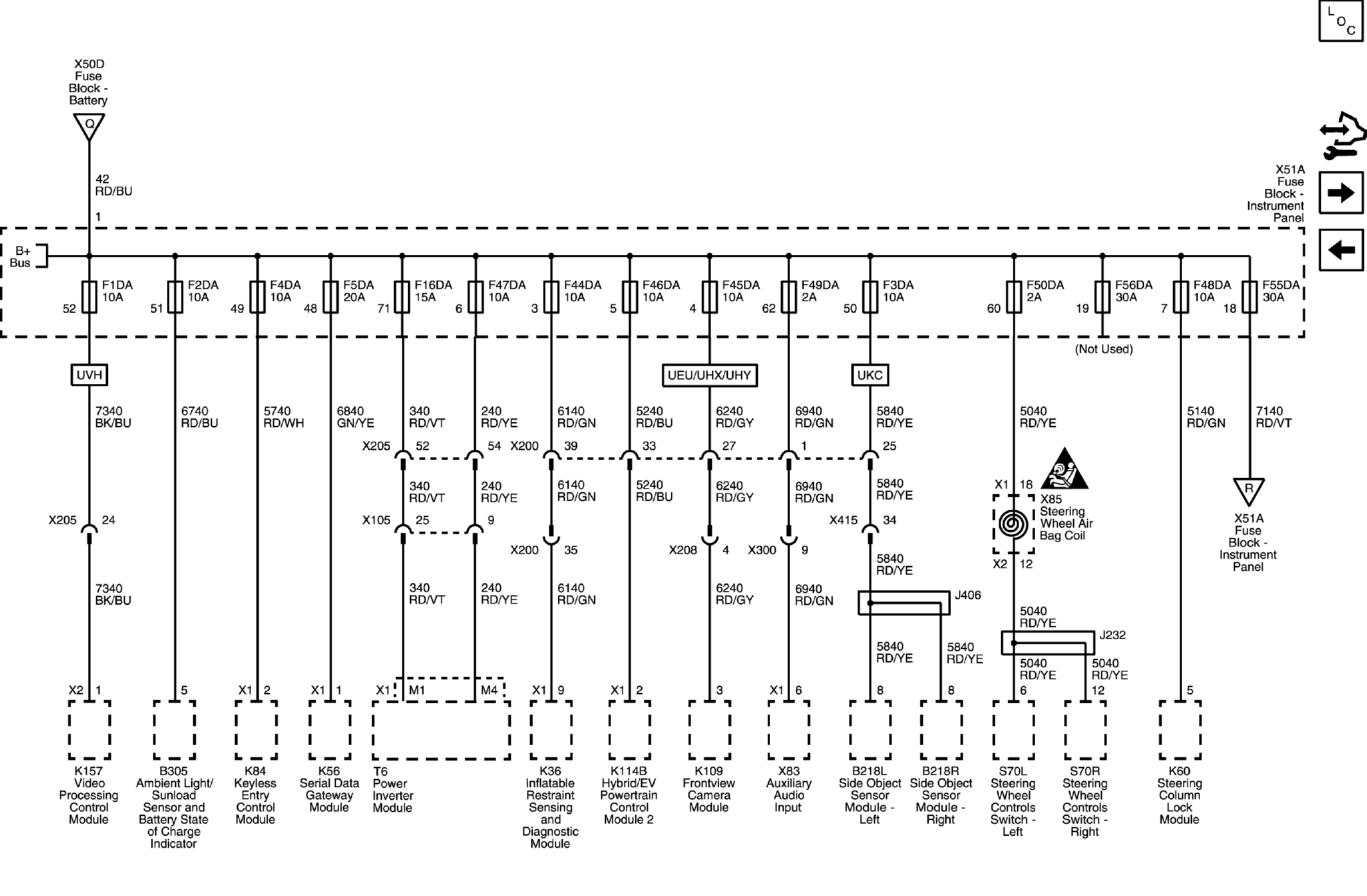

F1DA, F2DA, F3DA, F4DA, F5DA, F16DA, F44DA, F45DA, F46DA, F47DA, F48DA, F49DA, F50DA, F55DA, and F56DA Fuses
F1DA, F2DA, F3DA, F4DA, F5DA, F16DA, F44DA, F45DA, F46DA, F47DA, F48DA, F49DA, F50DA, F55DA, and F56DA Fuses
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
