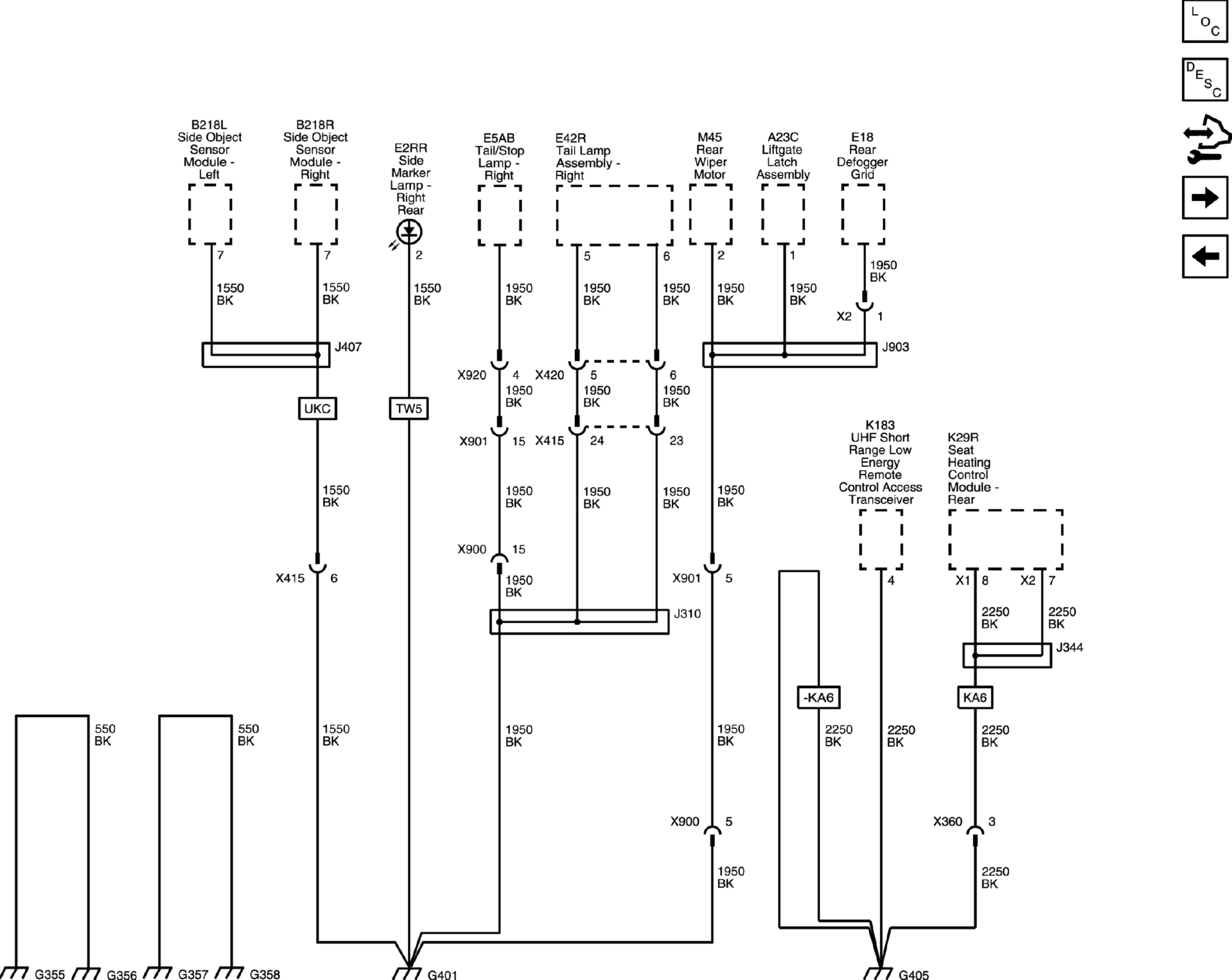

Home >> Chevrolet >> 2018 >> Bolt EV LT >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Wiring Harness Routing And Wiring Schematic Diagrams >> Ground Distribution Wiring Schematics >> G355, G356, G357, G358, G401 and G405
