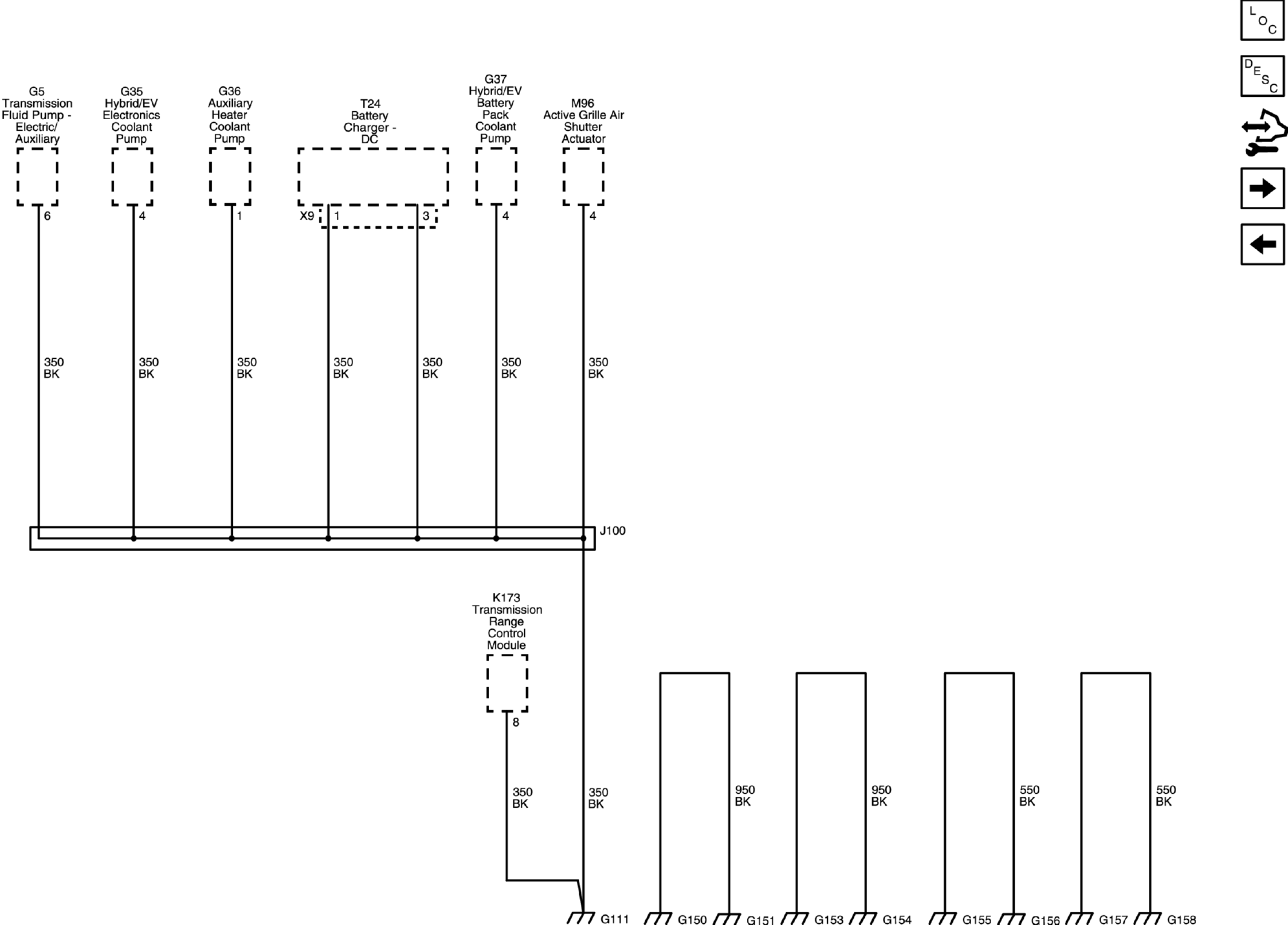

G111, G150, G151, G153, G154, G155, G156, G157 and G158

GM4811643

Courtesy of GENERAL MOTORS COMPANY
