Wheel Well Components - Rear

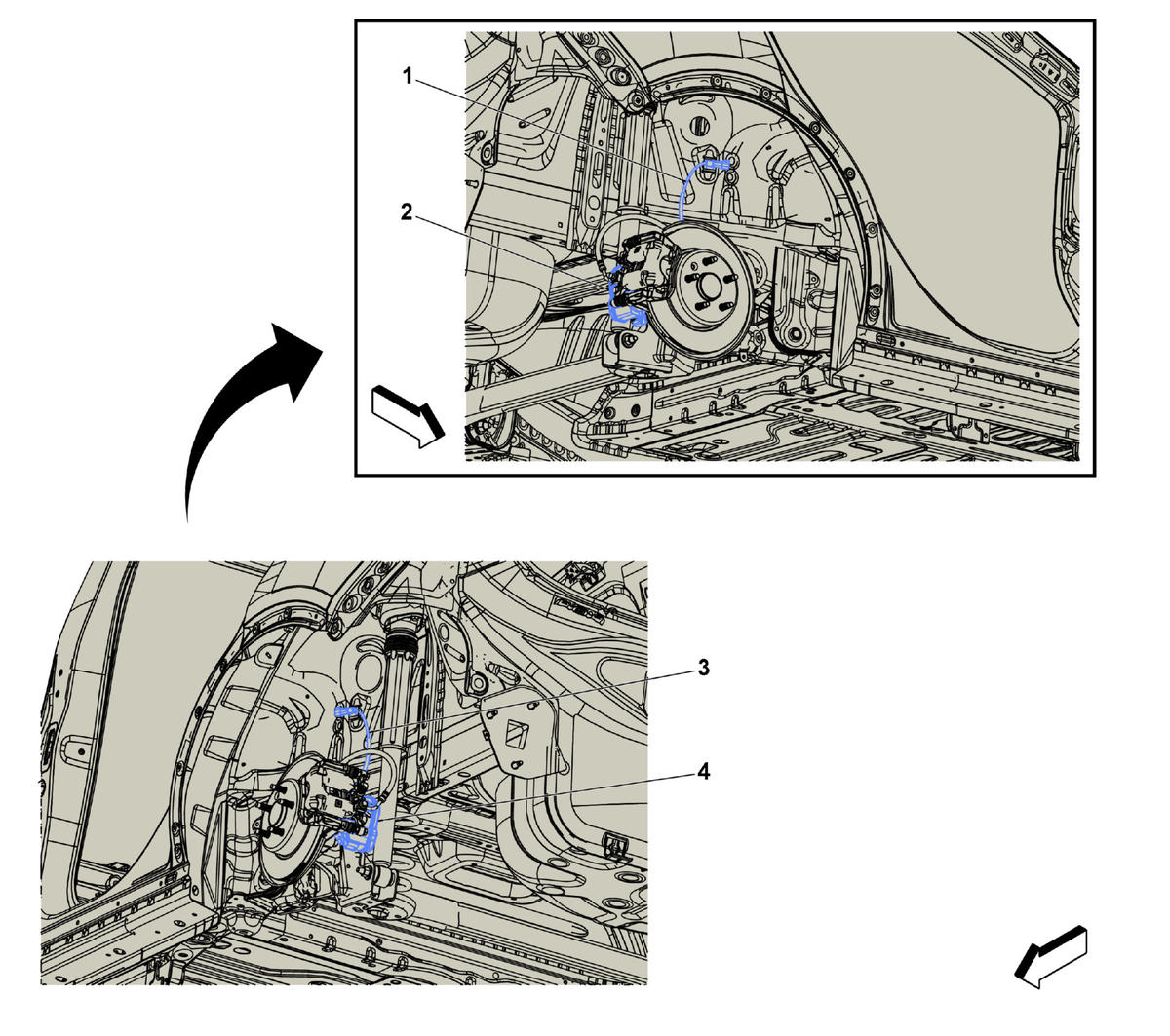

GM4530579Courtesy of GENERAL MOTORS COMPANY
Wheel Well Components - Rear

Items
1 B5RR Wheel Speed Sensor - Right Rear
2 M104R Park Brake Actuator - Right M104R Park Brake Actuator - Right
3 B5LR Wheel Speed Sensor - Left Rear B5LR Wheel Speed Sensor - Left Rear
4 M104L Park Brake Actuator - Left M104L Park Brake Actuator - Left
