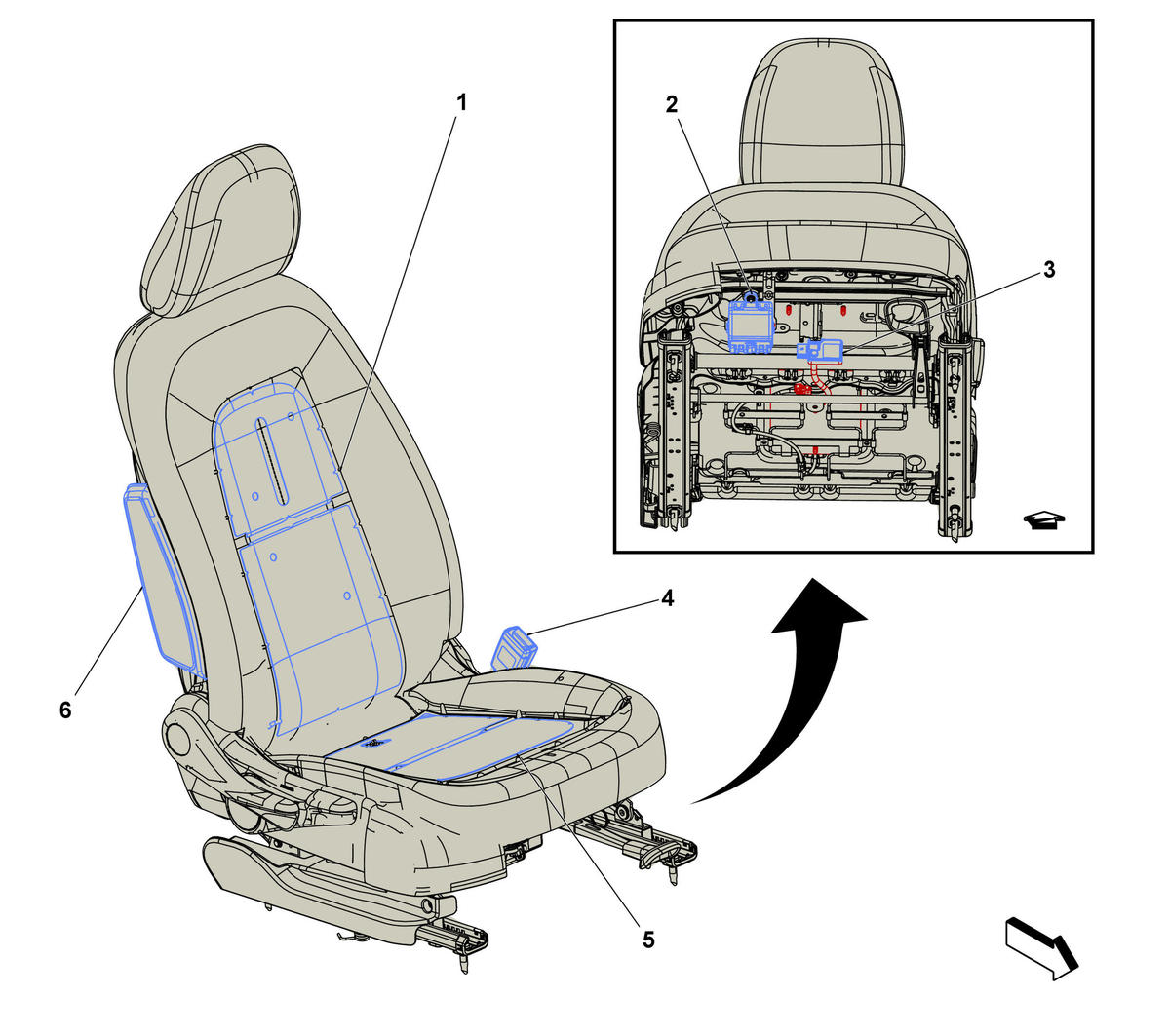

Passenger Seat Components
Passenger Seat Components
| Items |
|---|
| 1 E14C Seat Heating Element - Passenger Back (KA1) E14C Seat Heating Element - Passenger Back (KA1) |
| 2 K29F Seat Heating Control Module - Front (KA1) K29F Seat Heating Control Module - Front X1 (KA1)K29F Seat Heating Control Module - Front X2 (KA1) |
| 3 K85 Passenger Presence Module K85 Passenger Presence Module |
| 4 B88P Seat Belt Switch - Passenger B153P Seat Belt Buckle - Passenger (AL0+AY0/AYF) |
| 5 E14D Seat Heating Element - Passenger Cushion (KA1) E14D Seat Heating Element - Passenger Cushion (KA1) |
| 6 F106RF Seat Side Air Bag - Right Front |
